S/N: TM01UTP5E305LSZH

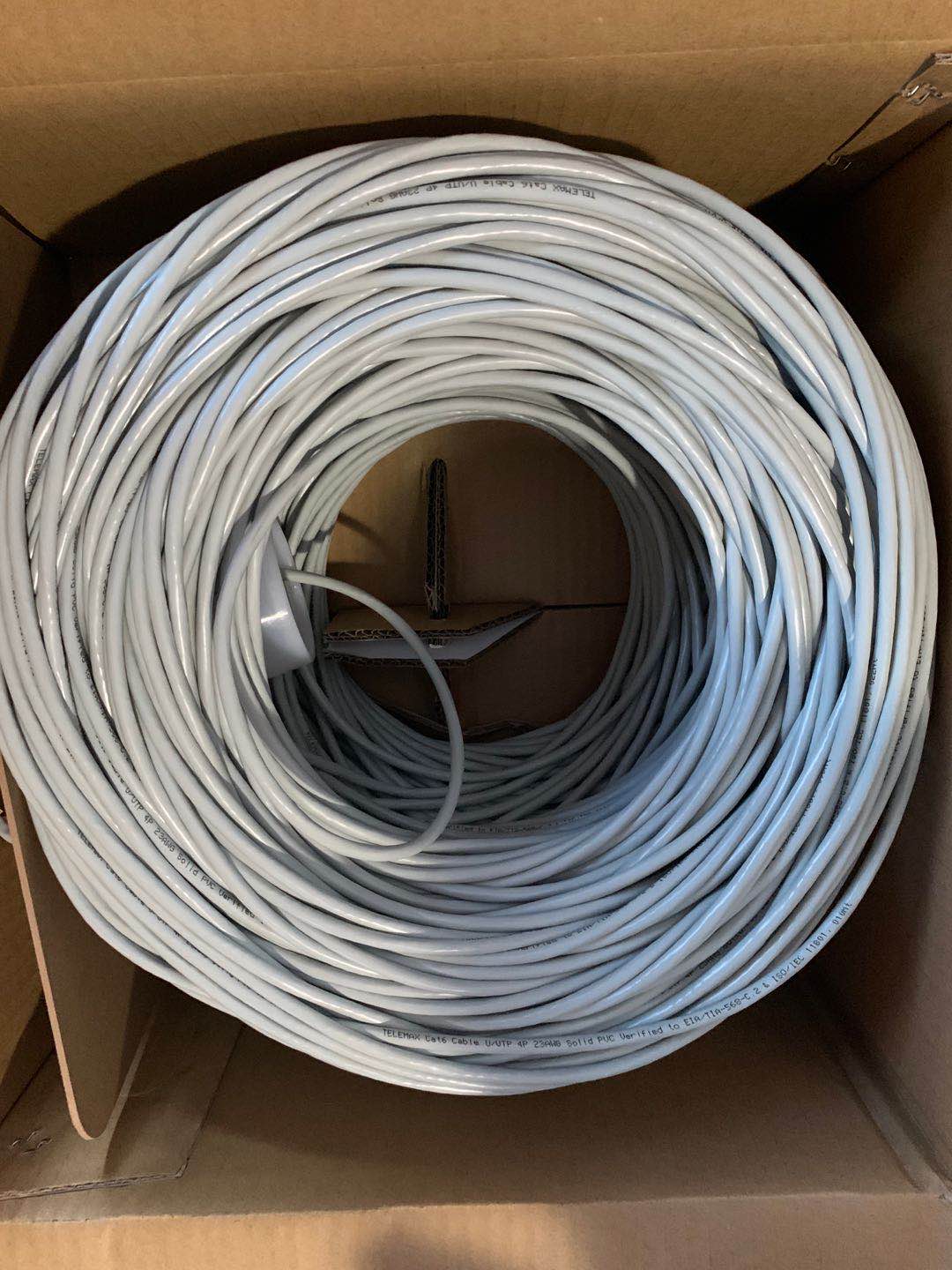

Description: Cat.5e UTP Solid 24AWG Lan Cable LSZH Jacket -305m/Box

PRODUCT  DESCRIPTION
1. This kind of cable use bare copper to be the center conduction with the specification is 24AWG and PE to be the dielectric. The jacket is made of fireproof material, which is so meaningful to the Cat.5e communication.
2. This Cat.5e UTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the electrical characteristics are exceed the fastest Cat.5e standards.
3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental protection.

ELECTRICAL  CHARACTERISTICS
1. Impedance: 100±15
2. Static electric capacity: max: 17.1 nf / kf
3. Resistance: max:28.6/kf
4. Unbalance resistance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%

PHYSICAL  CHARACTERISTICS
1. Copper diameter: 24AWG
2. Outer diameter: 5.0mm
3. Weight: 10.5kg/kft
4. Minimum bend radius: O.D.*4-6
5. Maximum pulling tension: 10.0
6. Jacket material: LSZH
7. Roted temperature: -20～70℃

APPLICATION
1. 10/100/1000Mbps Ethernet
2. 100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etc

STANDARD
1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568B

Remark:

PE, PVC Jacket is an option.

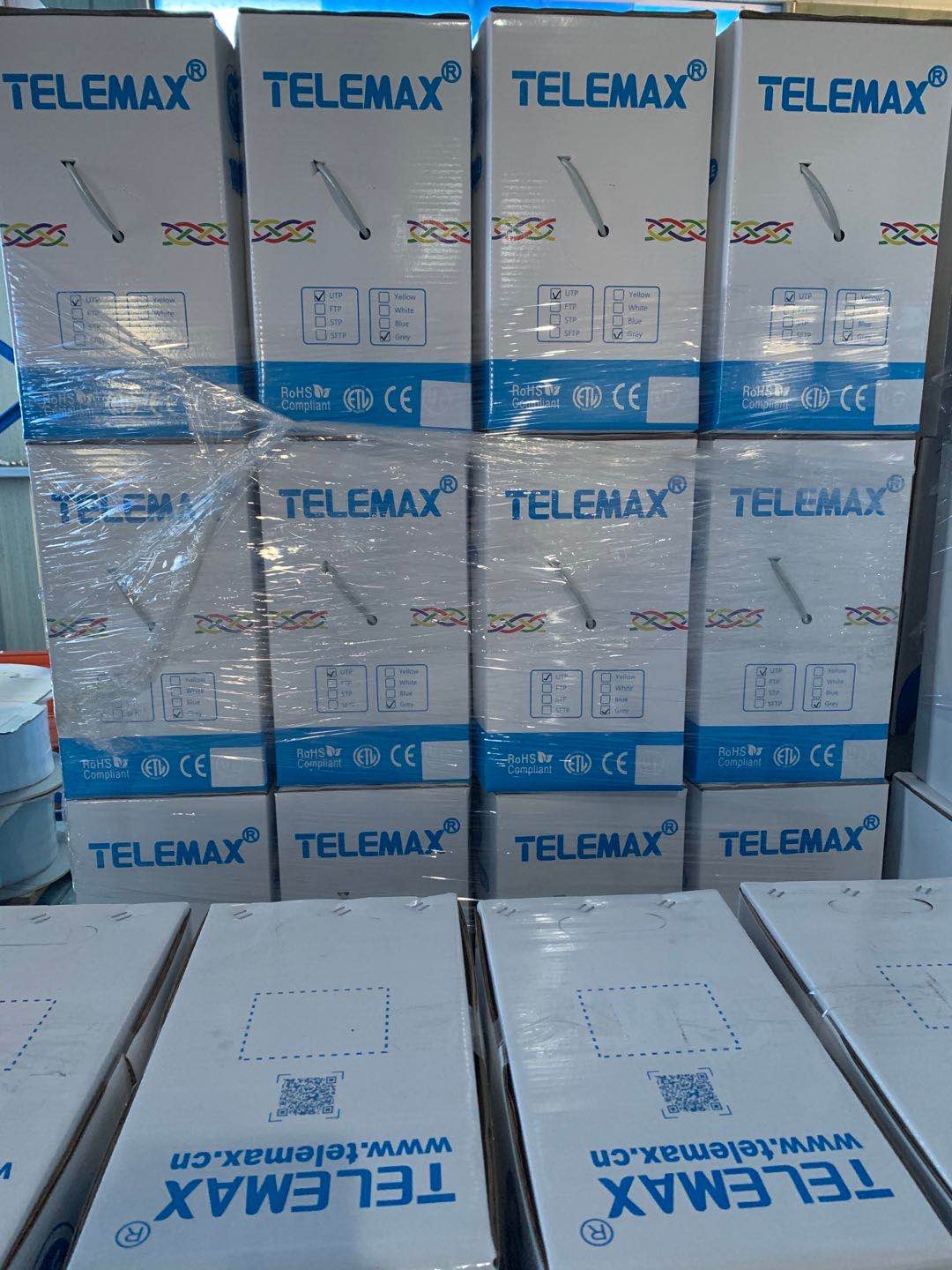

Packing Information:

•
  data sheet - Lan cable- CAT5E UTP 24AWG 4PAIR LSZH.pdf
