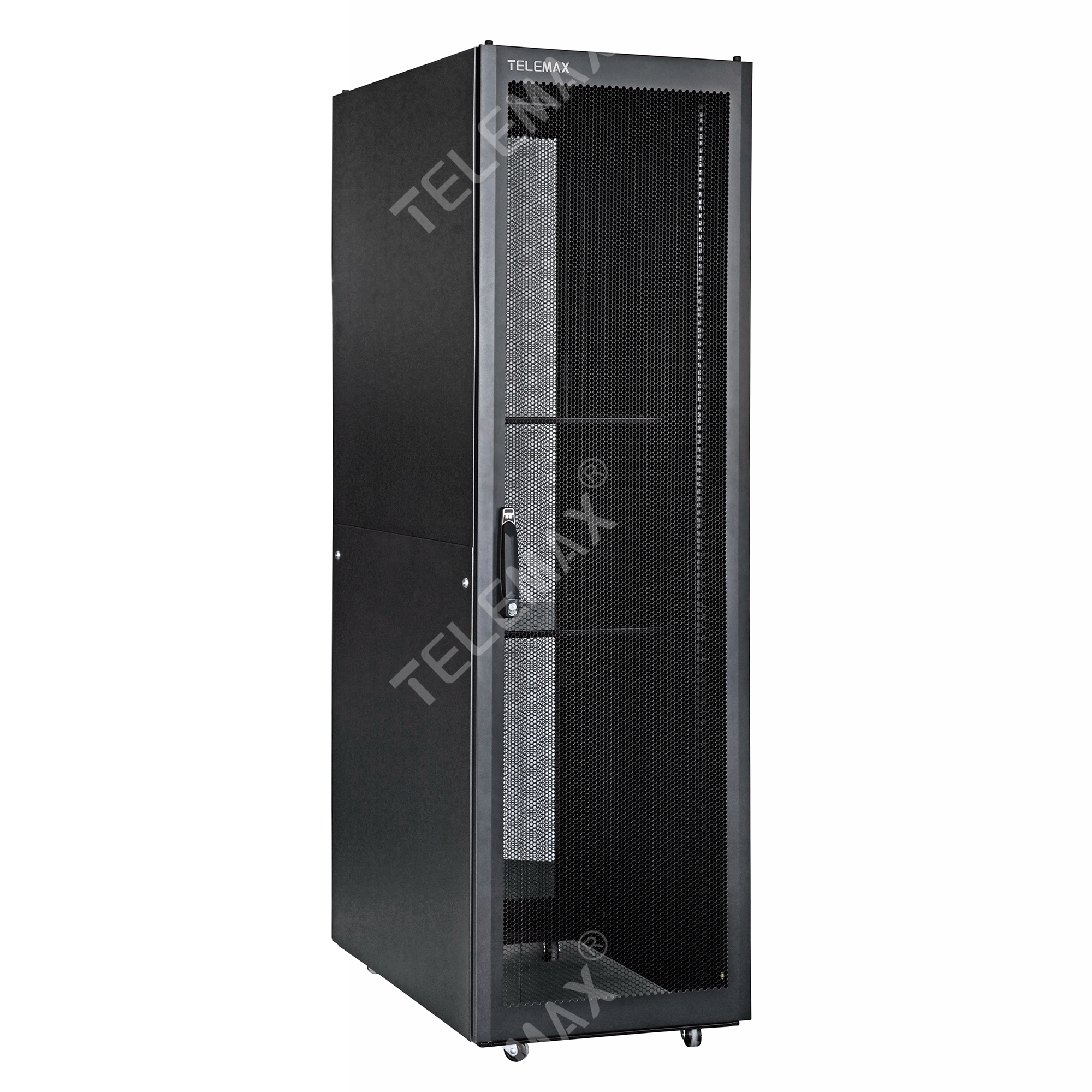

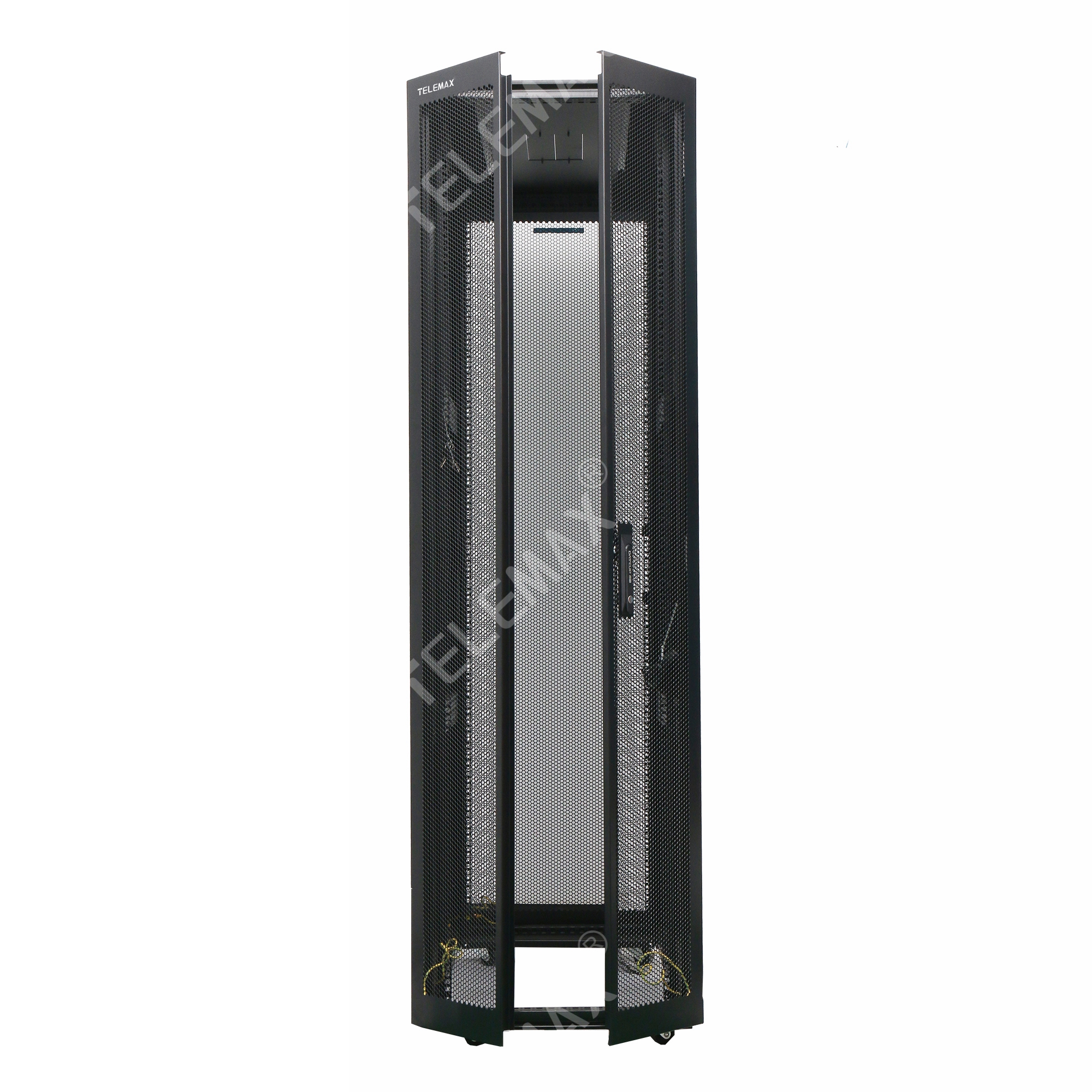

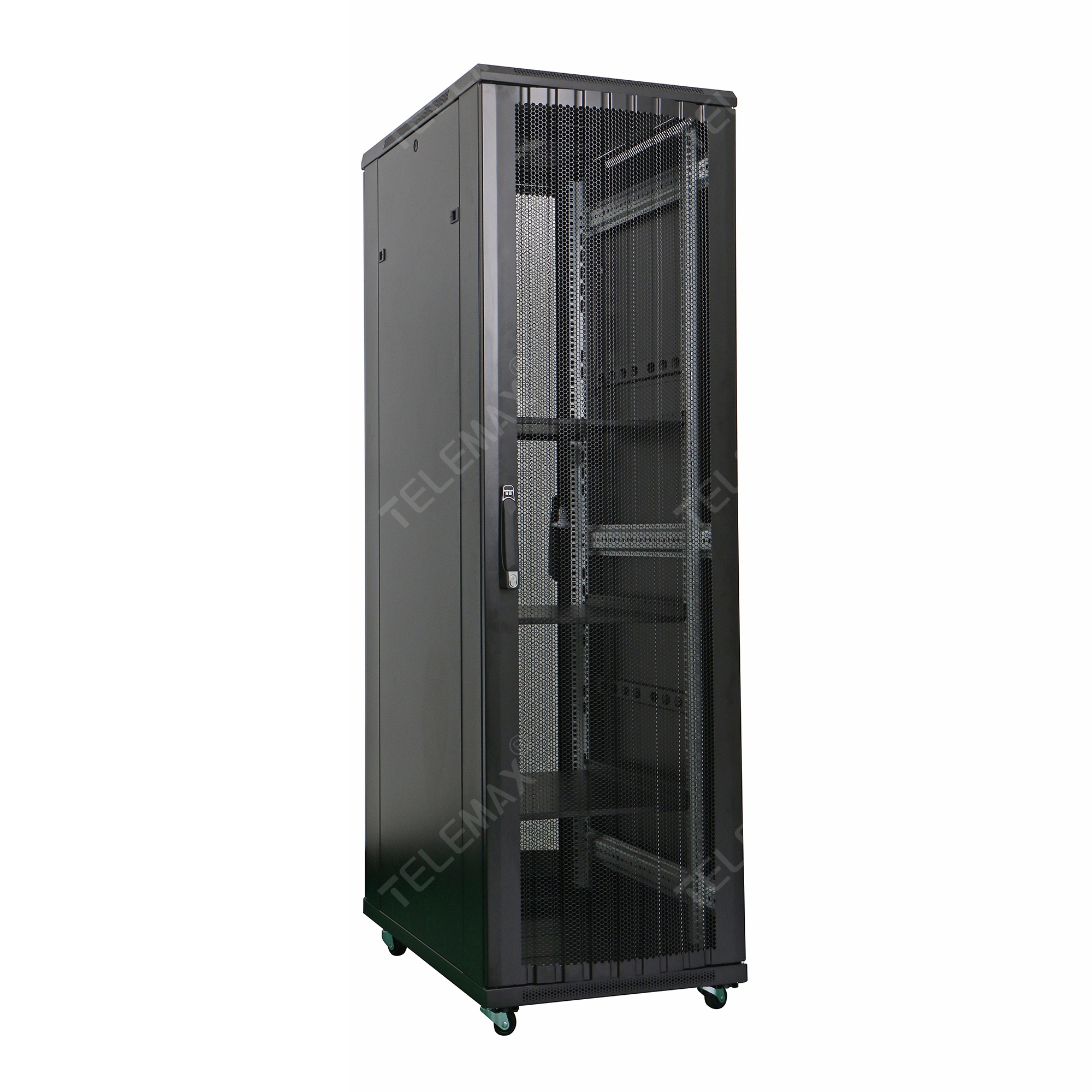

Floor/Standing Network Cabinets 19'' 600mm/800mm/1000mm depth 18U - 47U hexagonal Mesh Door

Part Code: TM07SNC47B

19 inch Standing/Floor Network Cabinets


Standards:

Comply with ANS/EIA RS-310-D, IEC 297-2, DIN41497 Part 1, DIN41494 Part 7, ETSI.


Features:

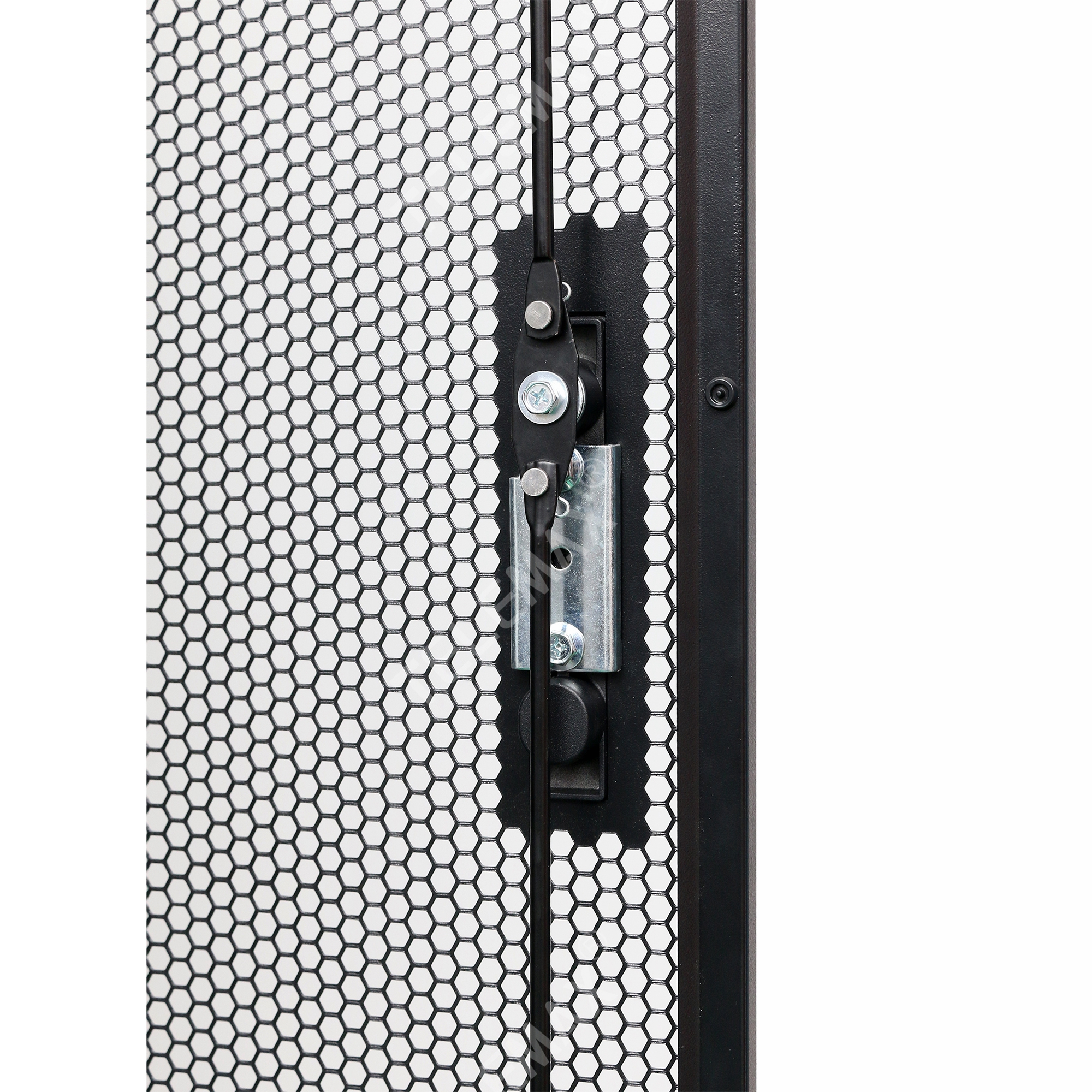

Exquisite design with precise craftsmanship; Welded steel frame of front and back part, flat packing is easy for loading and transportation; Tempered glass of front door with over 180 turning degree, vented front door border; Steel reel door with little round lock, other type of lock is optional; Adjustable feet and castors; Cable entry on the top, adjustable cable entrance at the bottom with panel; Advanced handle locks for front door, other types of locks are optional; Efficient baying kit, earthing kit; Various optional accessories for installation; Flat assembled packing saves big space of container.


Materials:

SPCC quality cold rolled steel; Thickness: 2.0mm - 1.5mm - 1.2mm.


Loading Capacity:

Static loading: 800kgs


Surface Finish:

Degreasing, picking, phosphating, Powder Coated



Return to project list

Key Features

Product Details

Download

Type: Floor Cabinets

Height: 18-47U

Width: 600/800mm

Depth: 600/800/900/1000mm

Door: Hexagonal Mesh

Material: SPCC

19 inch Standing/Floor Network Cabinets


Standards:

Comply with ANS/EIA RS-310-D, IEC 297-2, DIN41497 Part 1, DIN41494 Part 7, ETSI.


Features:

Exquisite design with precise craftsmanship; Welded steel frame of front and back part, flat packing is easy for loading and transportation; Tempered glass of front door with over 180 turning degree, vented front door border; Steel reel door with little round lock, other type of lock is optional; Adjustable feet and castors; Cable entry on the top, adjustable cable entrance at the bottom with panel; Advanced handle locks for front door, other types of locks are optional; Efficient baying kit, earthing kit; Various optional accessories for installation; Flat assembled packing saves big space of container.


Materials:

SPCC quality cold rolled steel; Thickness: 2.0mm - 1.5mm - 1.2mm.


Loading Capacity:

Static loading: 800kgs


Surface Finish:

Degreasing, picking, phosphating, Powder Coated
