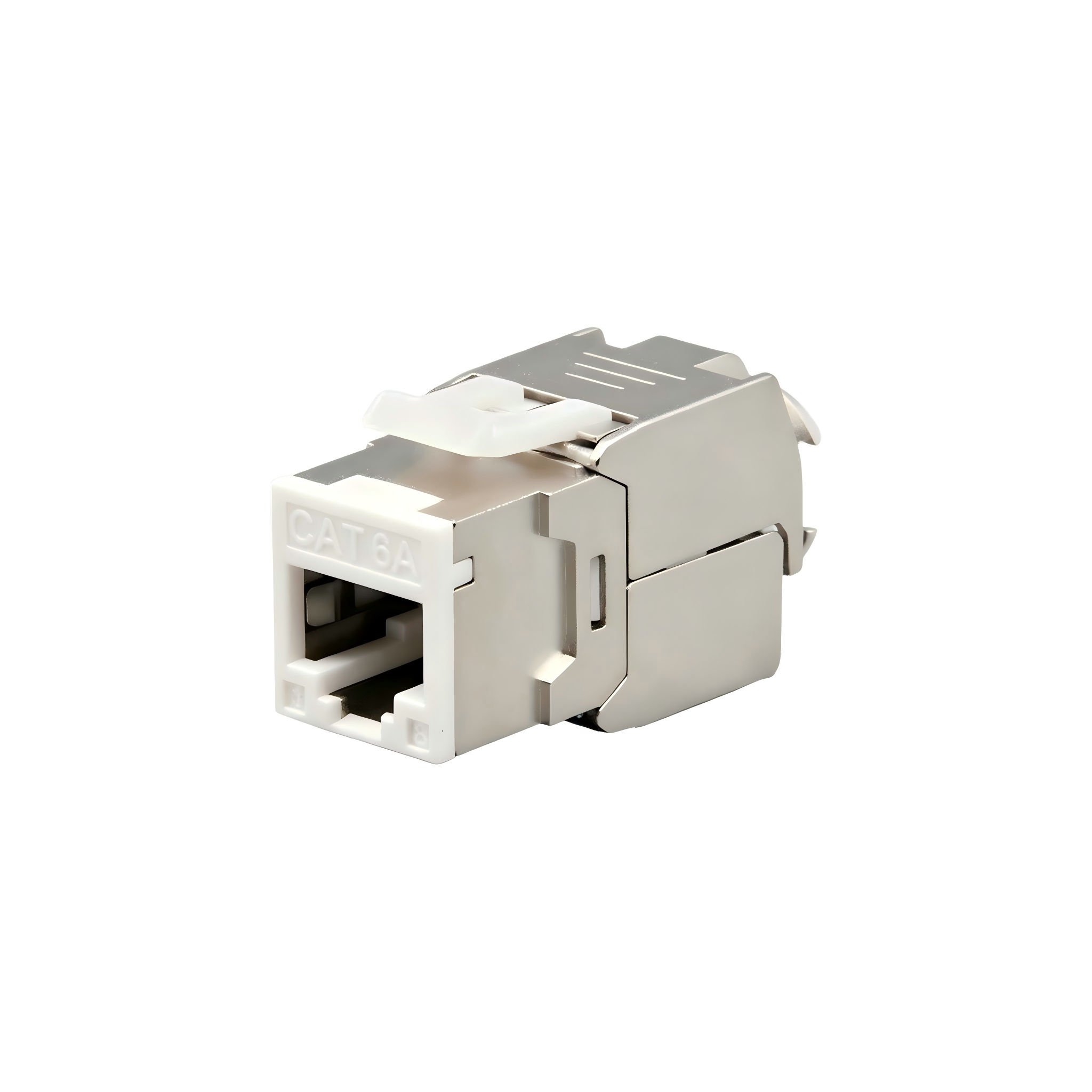

TM04C6AKJTLLX+STP

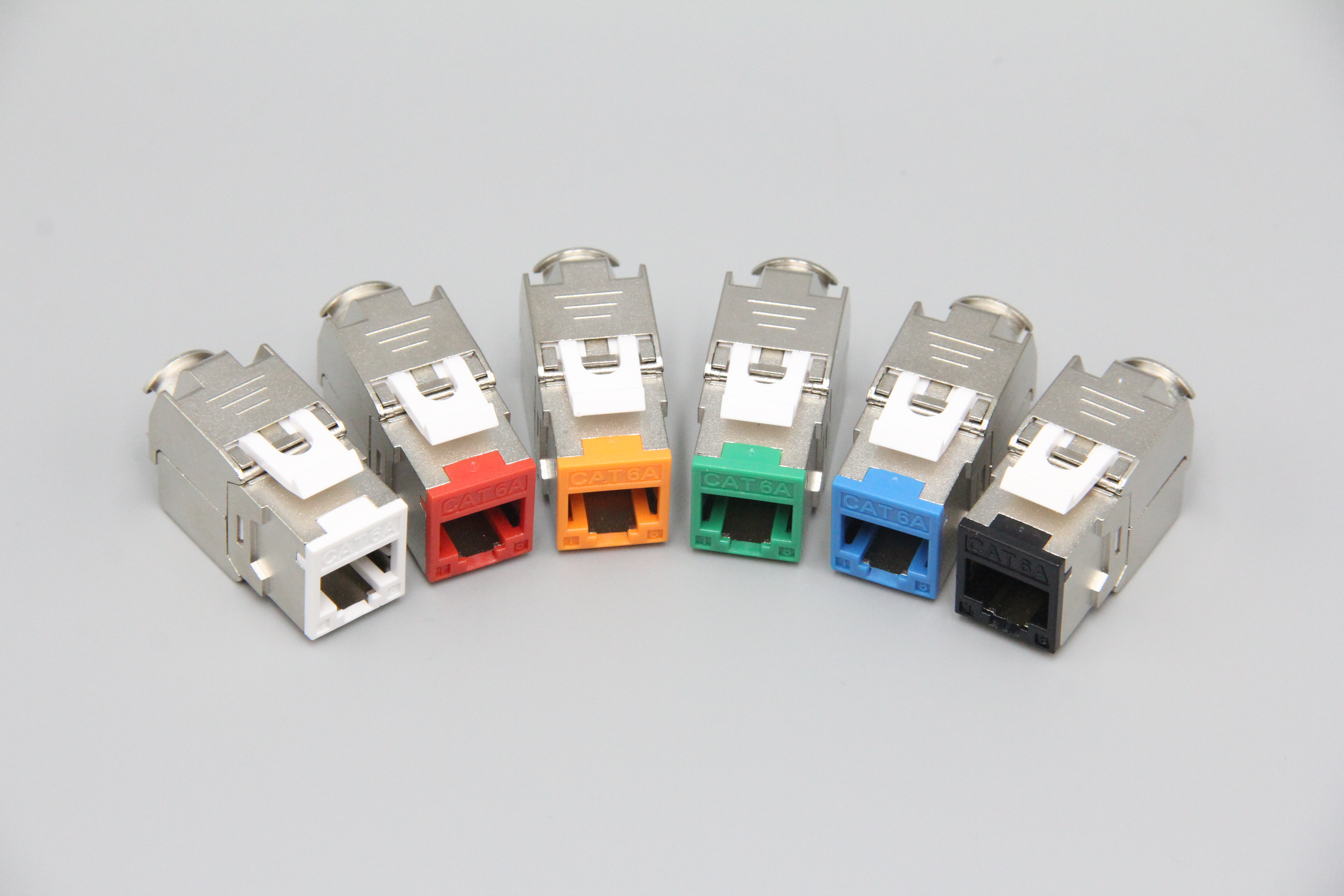

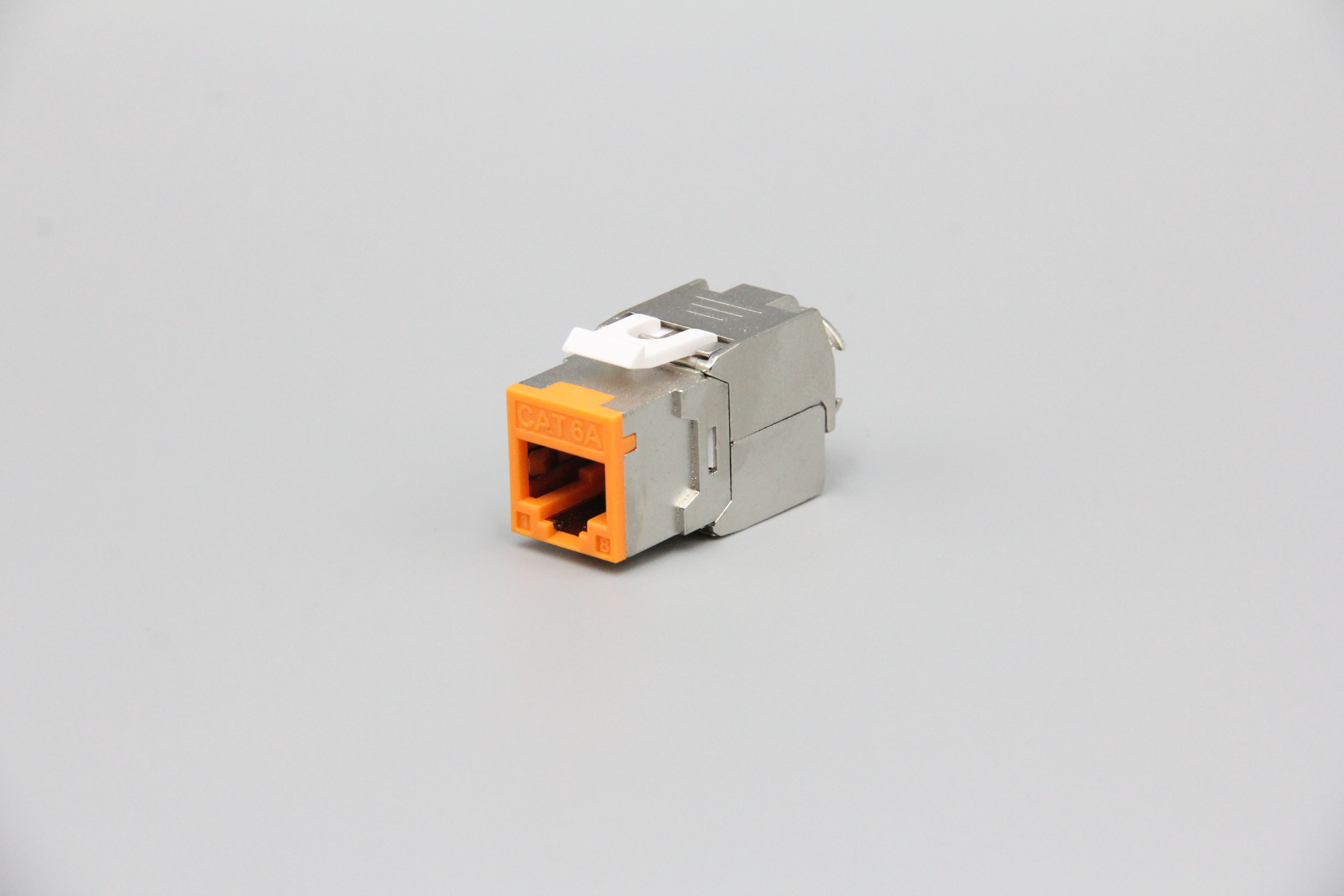

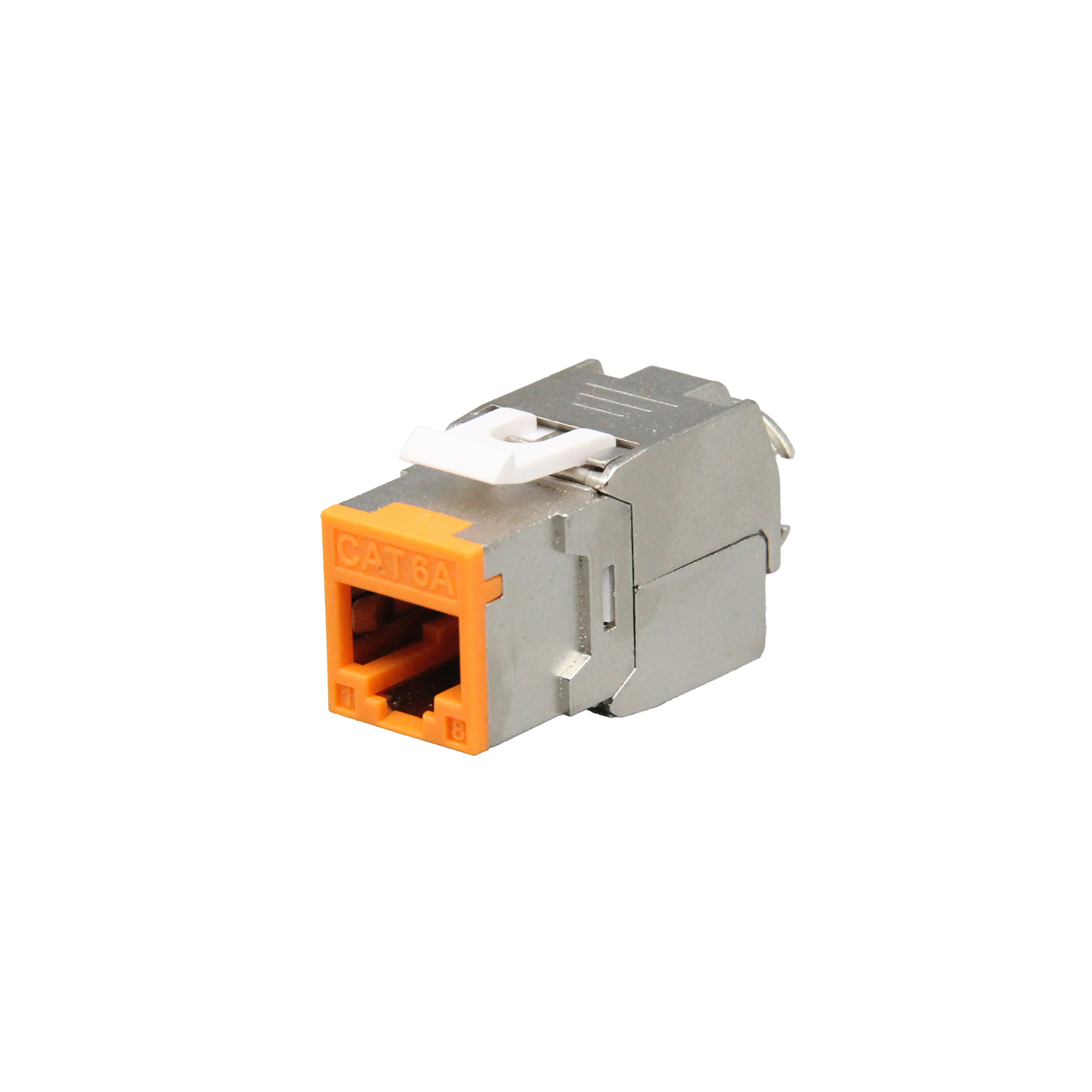

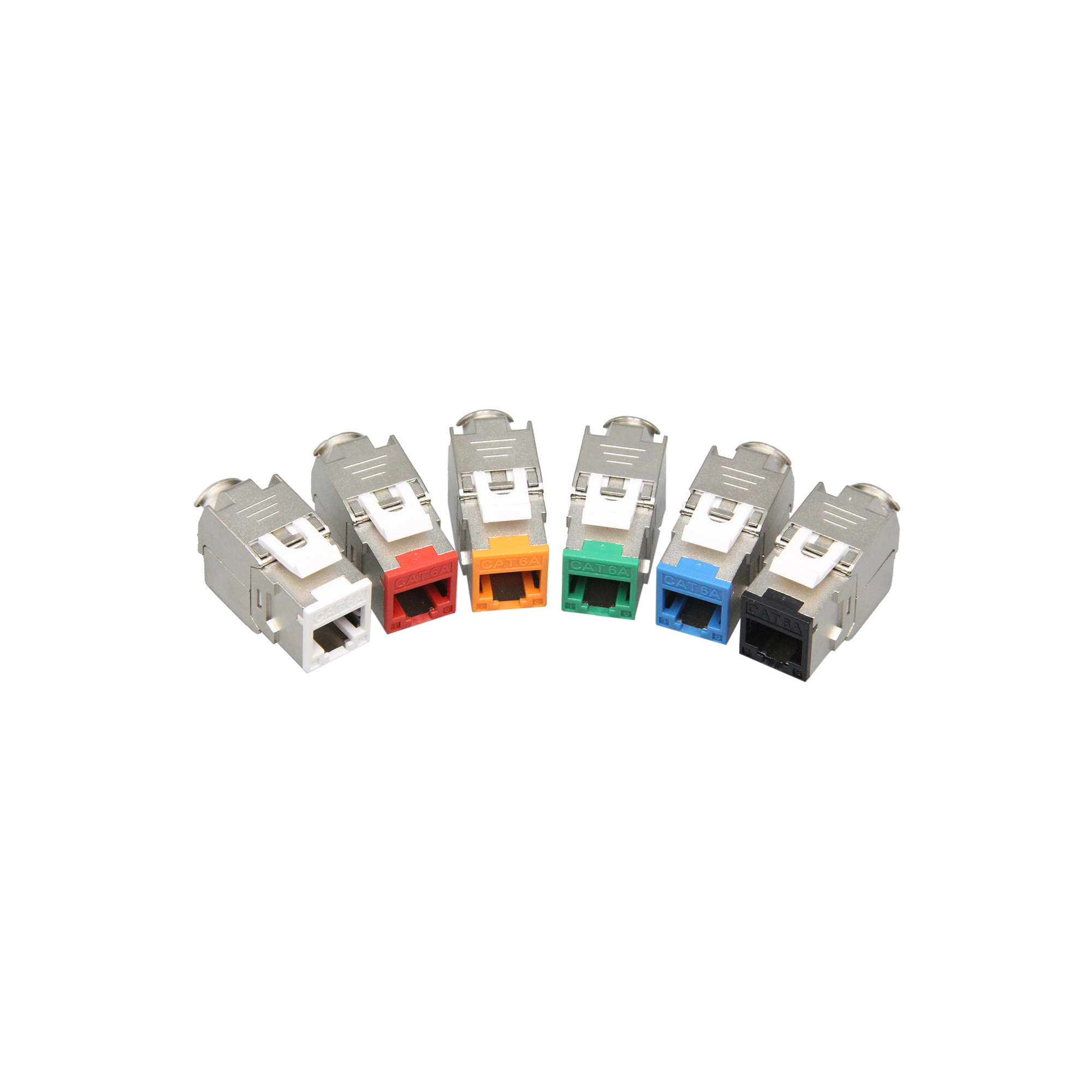

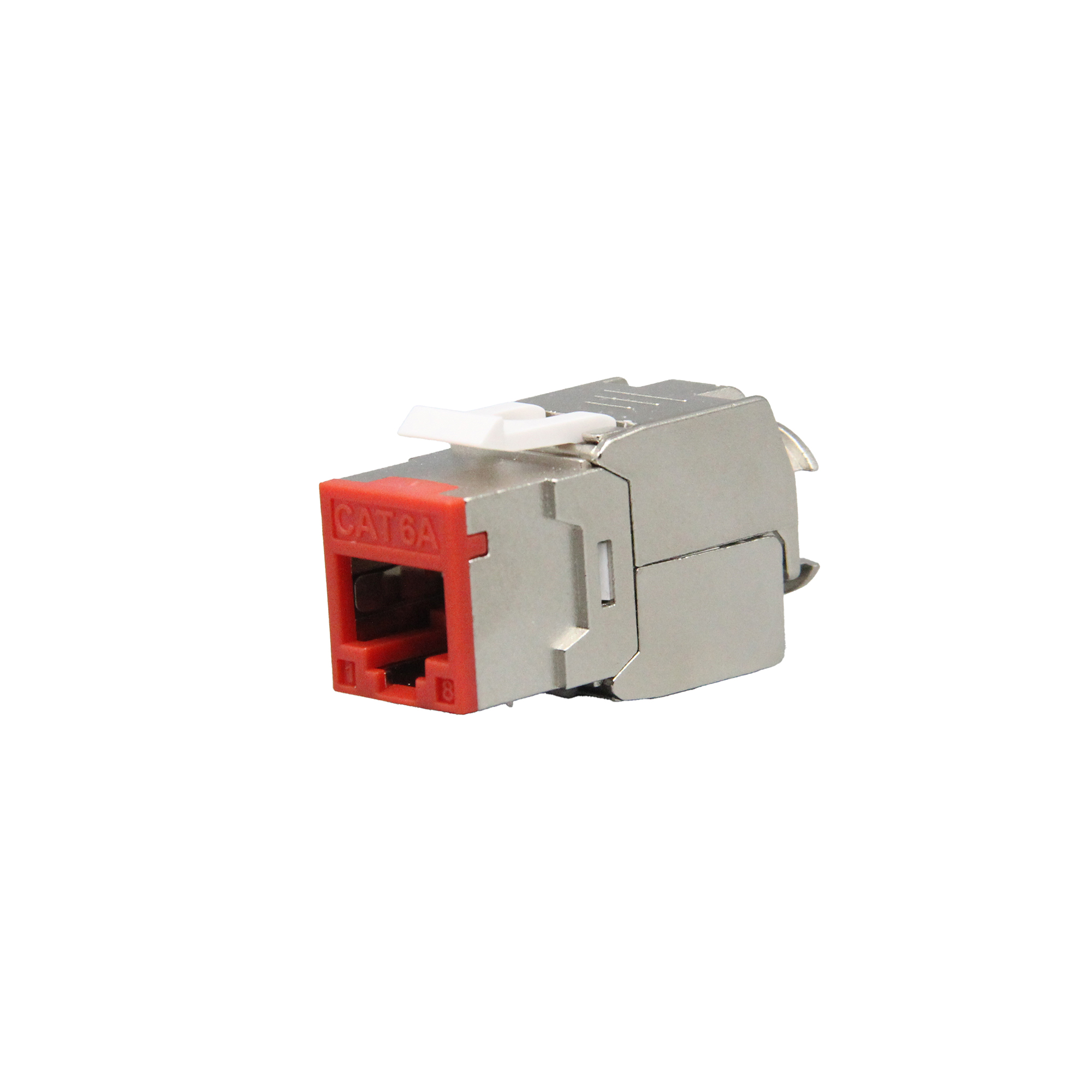

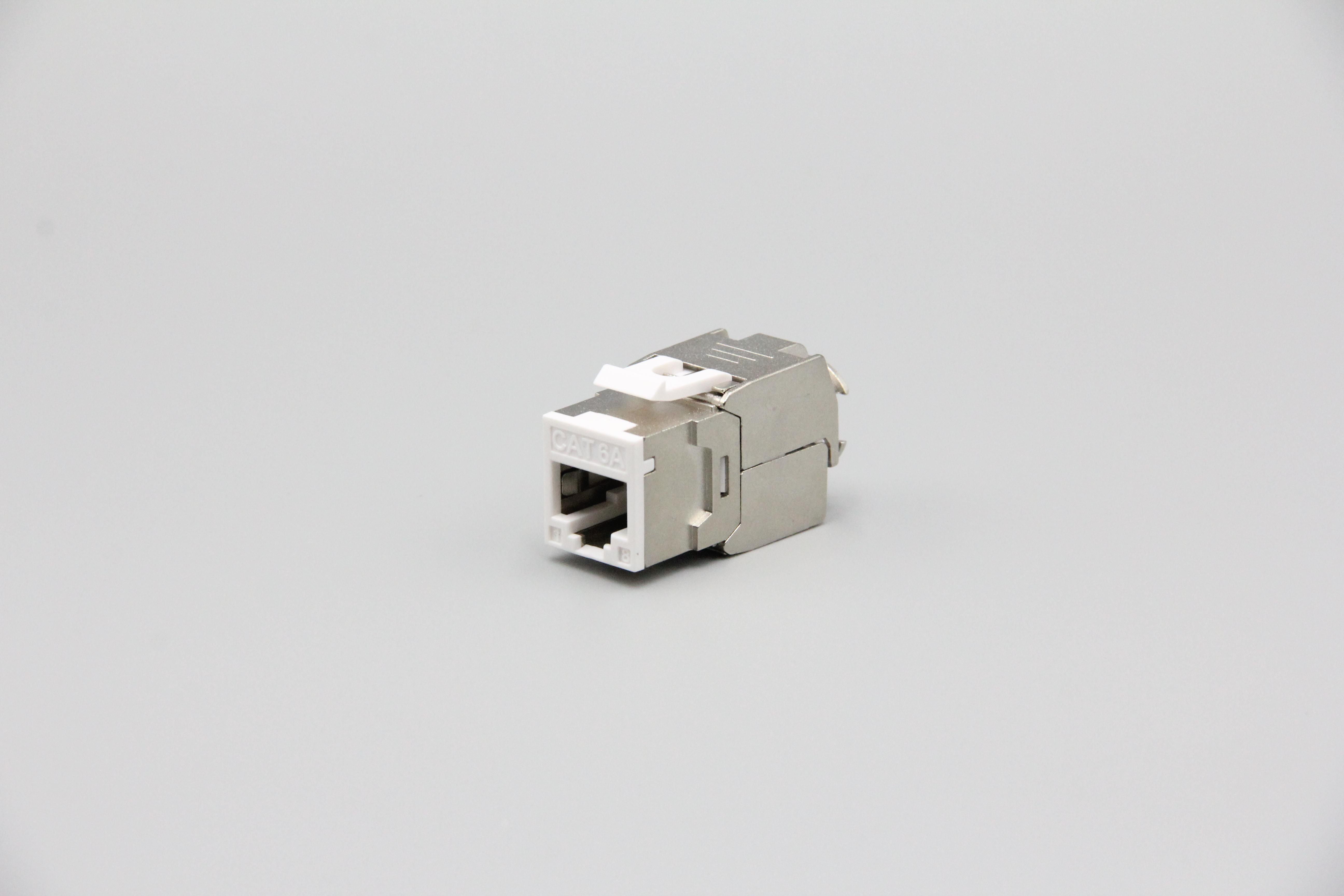

Telemax Cat.6a/ Cat.6 Keystone jack toolless up -down colorful

ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

6.  Mates with modular plug conforming to FCC part 68, Subpart F.

Environmental:

1.  Storage: -40°TO +70°

2.  Operation: -10°TO 60°

Mechanical:

1.  Housing material: ZINC ALLOY

2.  Insert material: FLAME RETARDANT PC

3. PCB material: FR-4T=1.2mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5. IDC contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.  RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~24

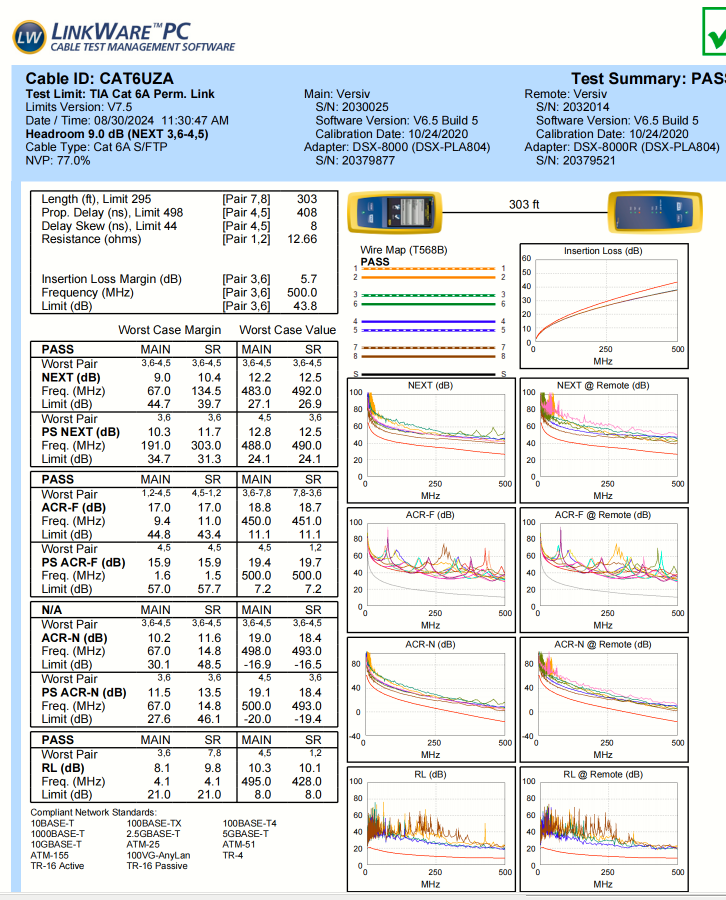

9. TIA Cat 6A Perm. Link Test: Worst pair NEXT margin≥ 7.0dB

10. Retentiveness of insertion structure: 50N 60±5s

11. Open Direction: Up - Down

•
