TM04C6JKTL04+UTP180

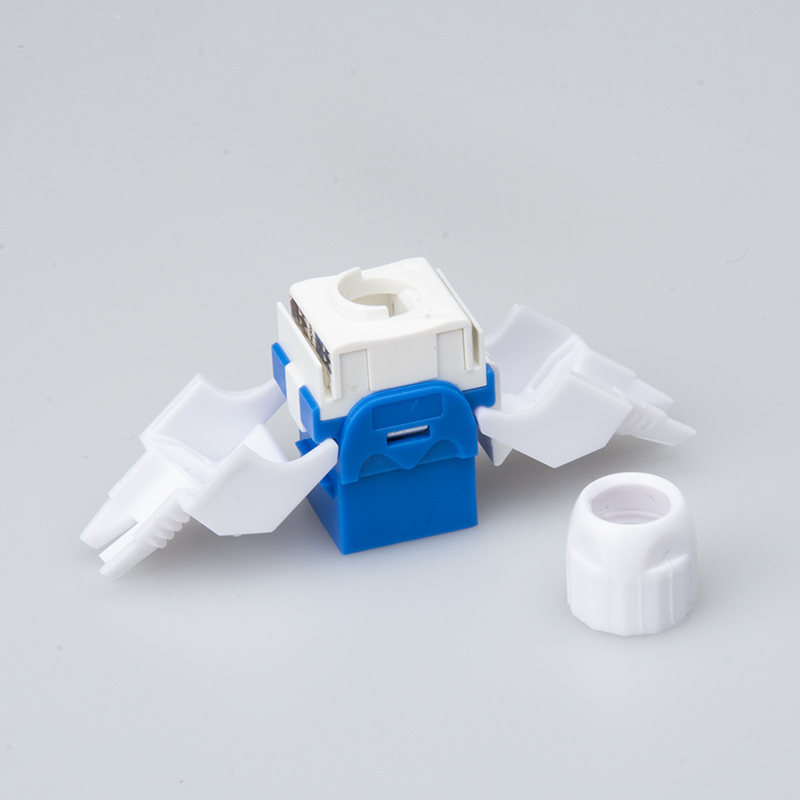

Telemax Cat.6/6a Toolless Keystone jack 180 degree with Spiral tail cap

Physicals:

Plastic Parts: PC UL 94V-0

Pin:Phosphor bronze gold over nickel plating, golden palting 3u’’

PCB: FR-4 UL94V-0

IDC Housing: PC UL 94V-0

IDC Contact: Phosphor bronze C5191 Over nickel plating, tin-plating electrical

Insulation resisitantce: 500MΩ 100V/DC/1MIN

Contact resistance:≤20 MΩ

PLUG Insertion life: ≥750 cycles

Punch too: 110 & Krone

Operation Temperature:-20 – 75C

Standard: ISO/IEC11801, ANSI/TIA568B.2-D
