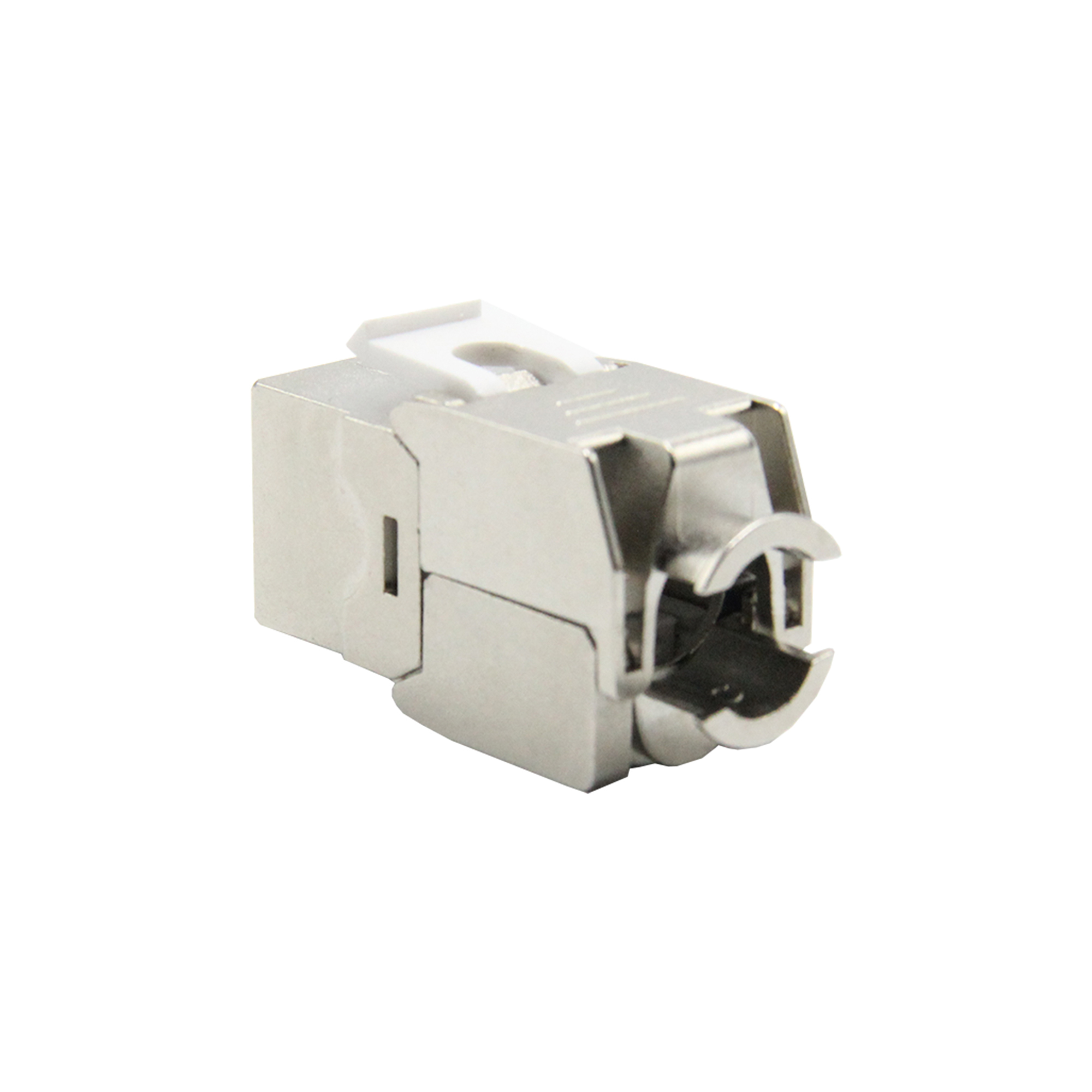

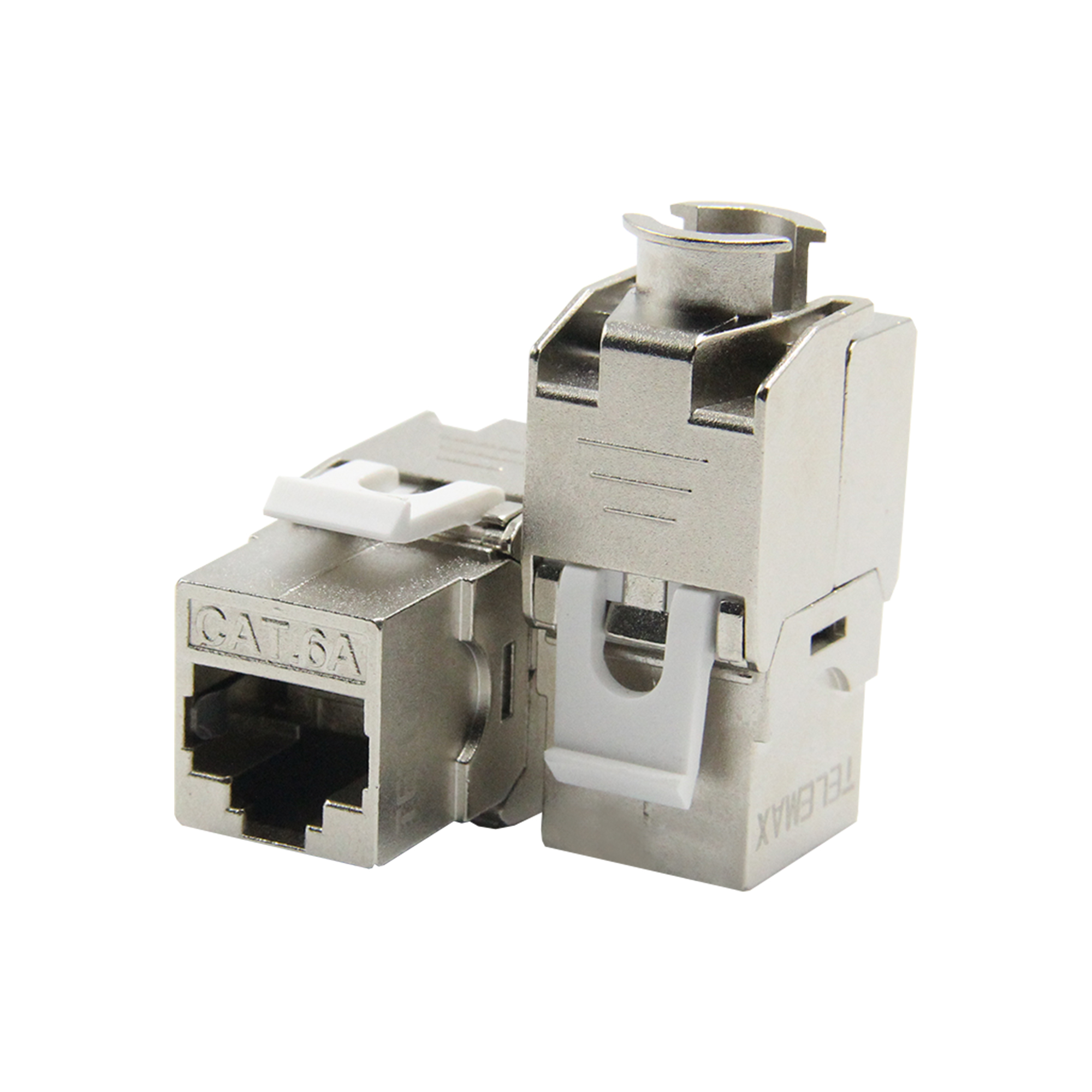

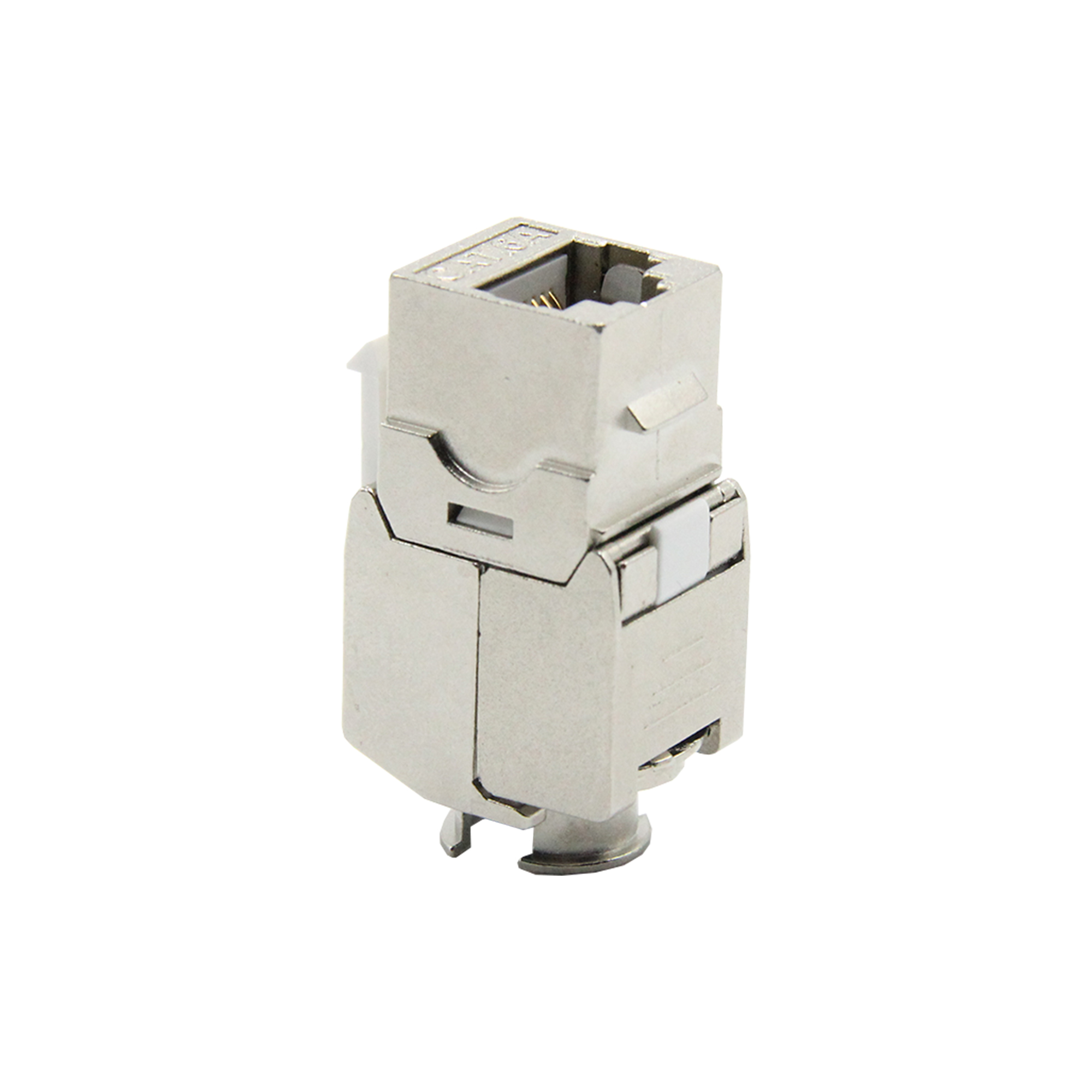

Cat.6/6a/7 STP Tool Free Keystone Jack Up-Down

Part Code : TM04C6AKJTL02+FTP

The Tool free jack is a female connector used in data communications, particularly local area networks (LANs). The jack is usually mounted in a wall plate or patch panel. A keystone plug is the matching male connector, usually attached to the end of a cable or cord.



A principal advantage of keystone connectors is their versatility. Several types of keystone jack can be mounted on a single patch panel. They are available in unshielded and shielded forms and can accommodate cords and cables having various numbers of conductors.

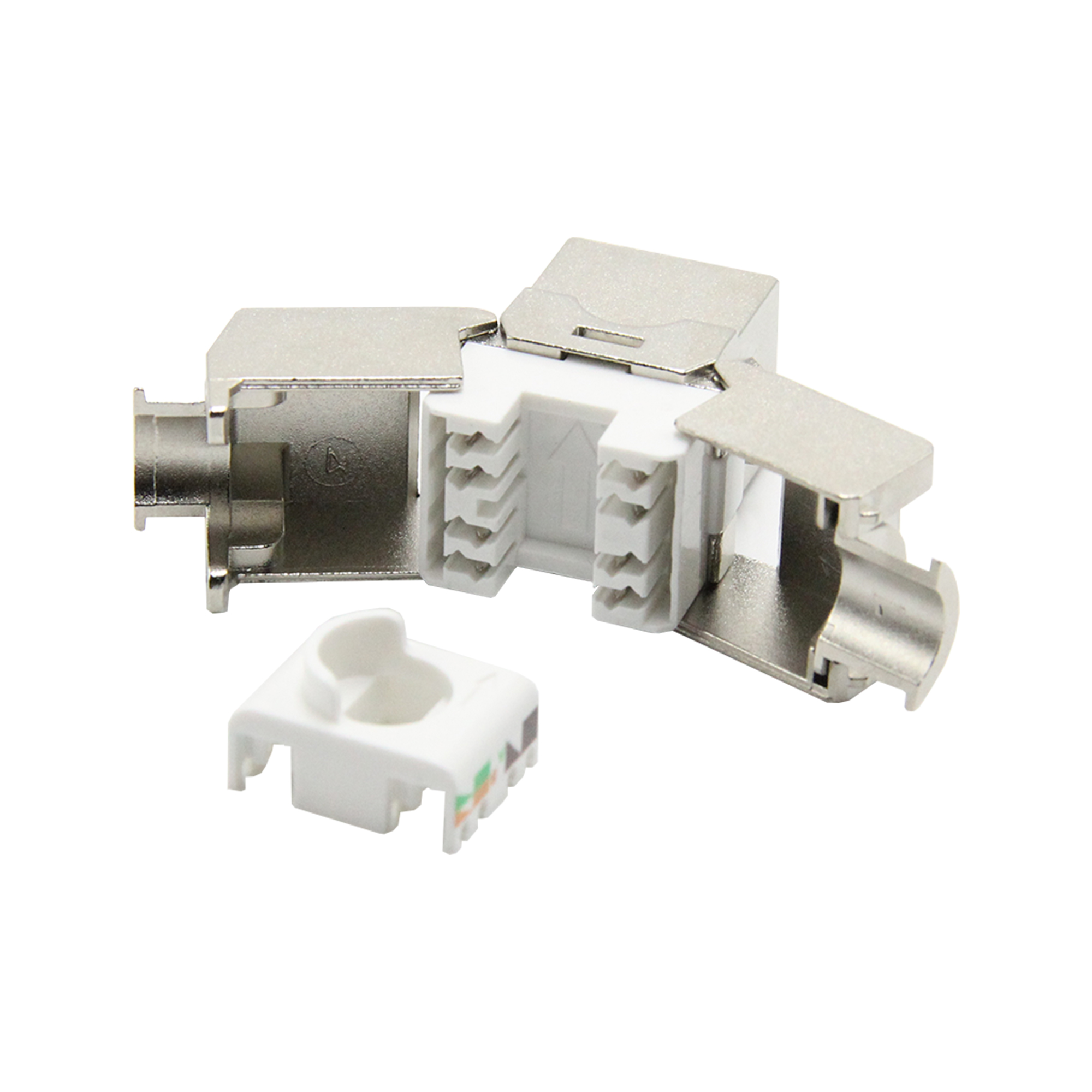

The structure of the Keystone Jack is compact and can be topless. This design is based on contemporaneity aesthetics. toolless punching hats can make your work more easy and fast, and it can also prevent the cable from slipping off from the IDC ports.



According to the requirement of T568A&T568B.The label instruction is stick on the side of the product to give an exact guide when an engineer punches the cables. Also in accordance with RoHS Directive.



RJ45 Keystone Jack is a normal kind of networking connector of information socket (i.e., communication outlet) in the wiring system. Telephone Jack with demanded contact numbers could be chosen. Various information modules provide multiple choice for wiring system.

Strips with colors are to identify and easy to manage the network. Any other type of Keystone Jack is an option, like the UK or France type.



Slim design for maximizing port connectivity in the same area.


Return to project list

Key Features

Product Details

Download

Category: Cat6/6a

Type: Tool Free

Application: FTP

Crimping Direction: Up-down

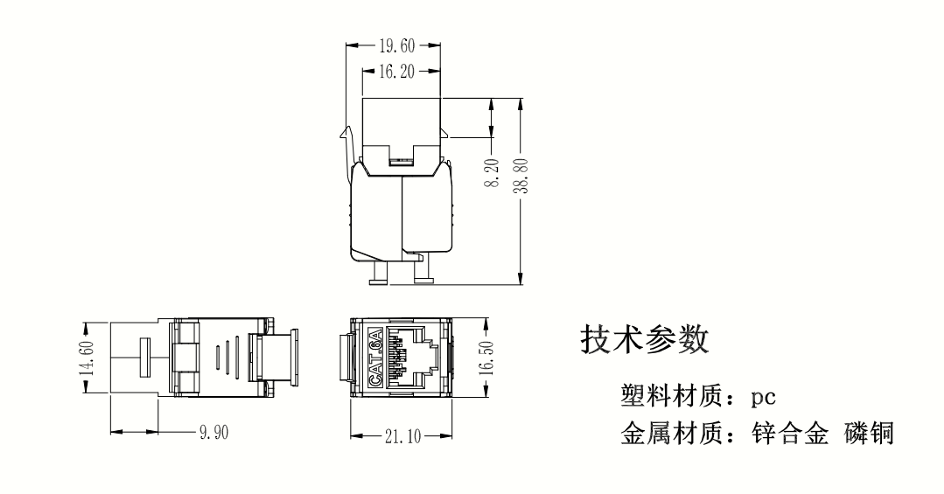

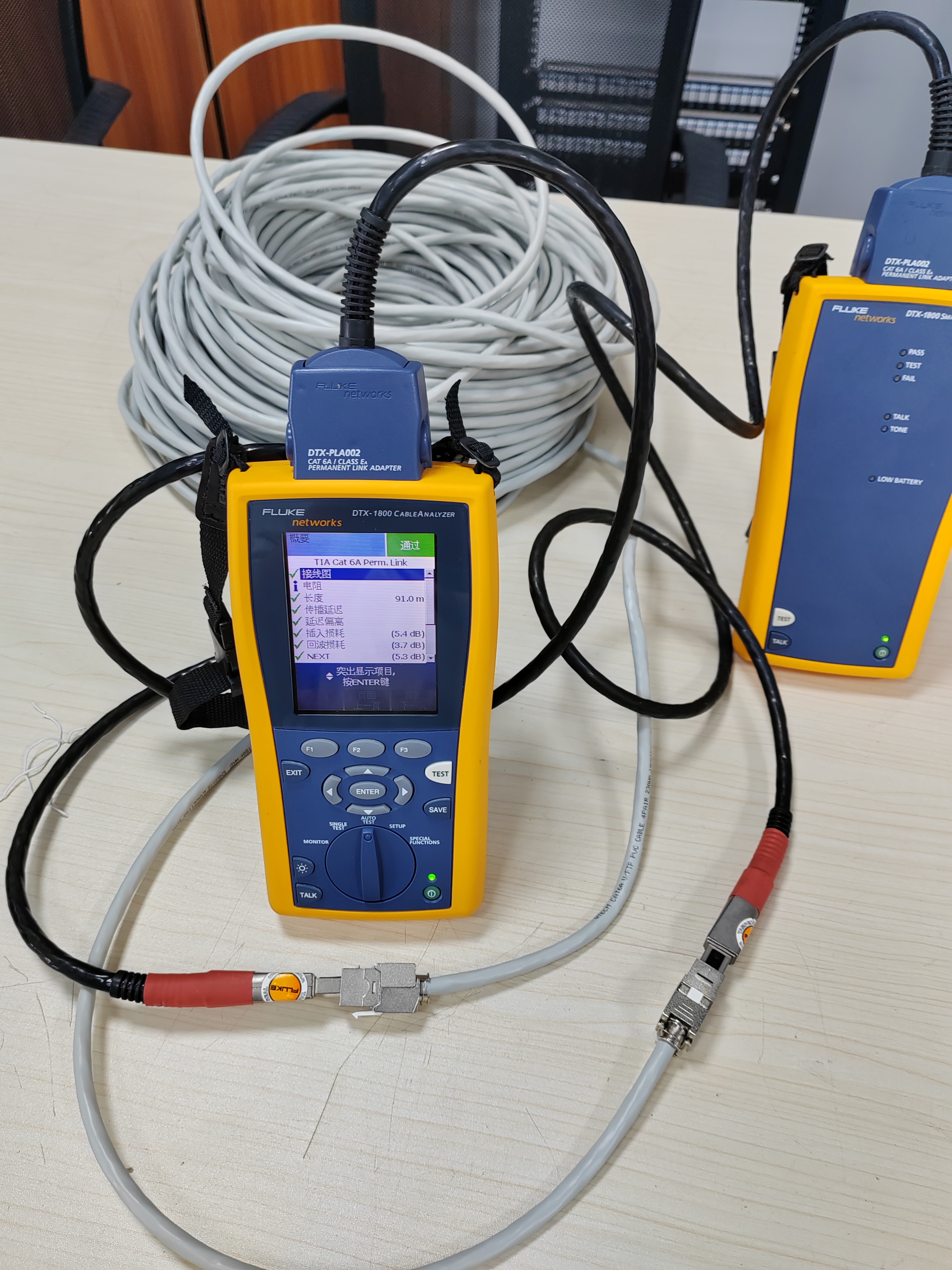

Test: Fluke Channel & Perm Link

Golden plating: 3um/30um/50um

ELECTRICAL:

1.  Voltage rating: 125 VAC RMS

2.  Current rating: 1.5 AMP

3.  Contact resistance: 20 Milliohms MAX

4.  Insulation resistance: 100 Megohms MIN @ 500 VDC

5.  Dielectric strength: 750 VAC RMS 60Hz, 1MIN

6.  Mates with modular plug conforming to FCC part 68, Subpart F.



Environmental:

1.  Storage: -40°TO +70°

2.  Operation: -10°TO 60°



Mechanical:

1.  Housing material: ZINC ALLOY

2.  Insert material: FLAME RETARDANT PC

3. PCB material: FR-4T=1.2mm

4.  Contact material: Phosphor bronze stamp PIN T=0.35mm

5. IDC contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

6.  RJ45 JACK LIFE: 750 TIMES MIN

7. IDC LIFE: 200 TIMES MIN

8. WIRE: AWG 22~24

9. TIA Cat 6A Perm. Link Test: Worst pair NEXT margin≥ 5.0dB

10. Retentiveness of insertion structure: 50N 60±5s

11. Open Direction: Up - Down


DESCRIPTION

Packing

Size (CM)

Weightkgs)

Qty/Box

CAT5E/6/6A STP KEYSTONE JACK TOOLESS

Carton Packing

51*36*32

15

500 pcs
