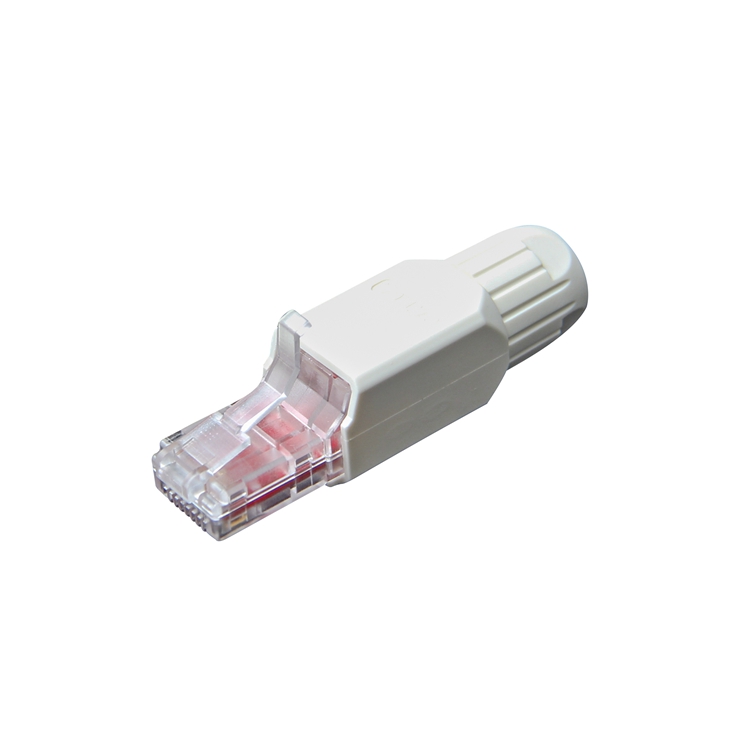

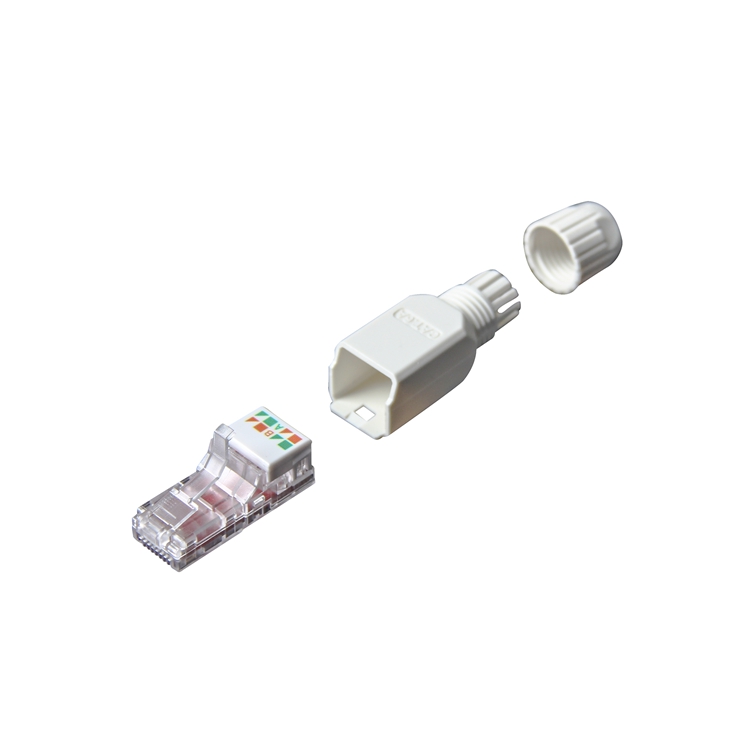

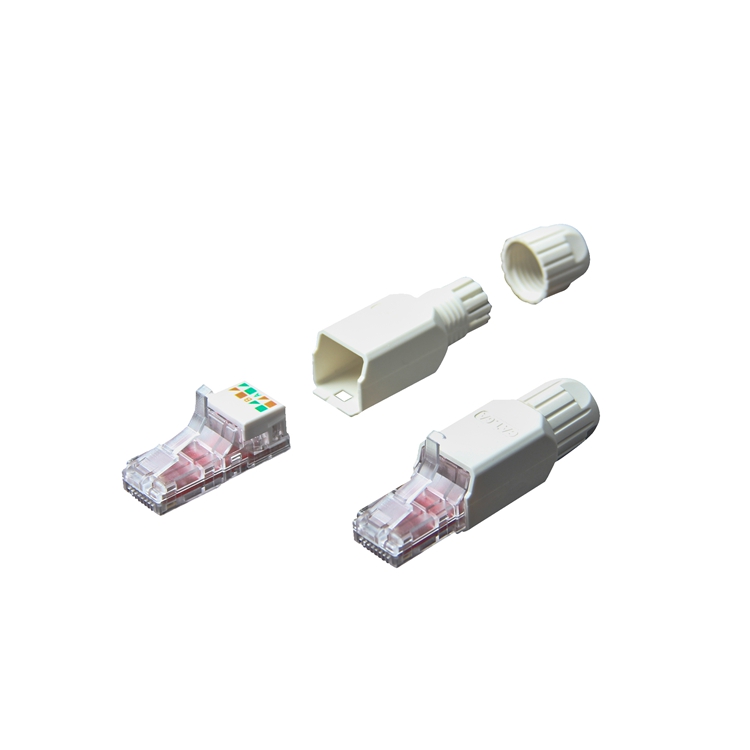

CAT6A/6 Tool Free Connector UTP

TM04C6ATCUTP02
  • RJ45 UTP toolless connector

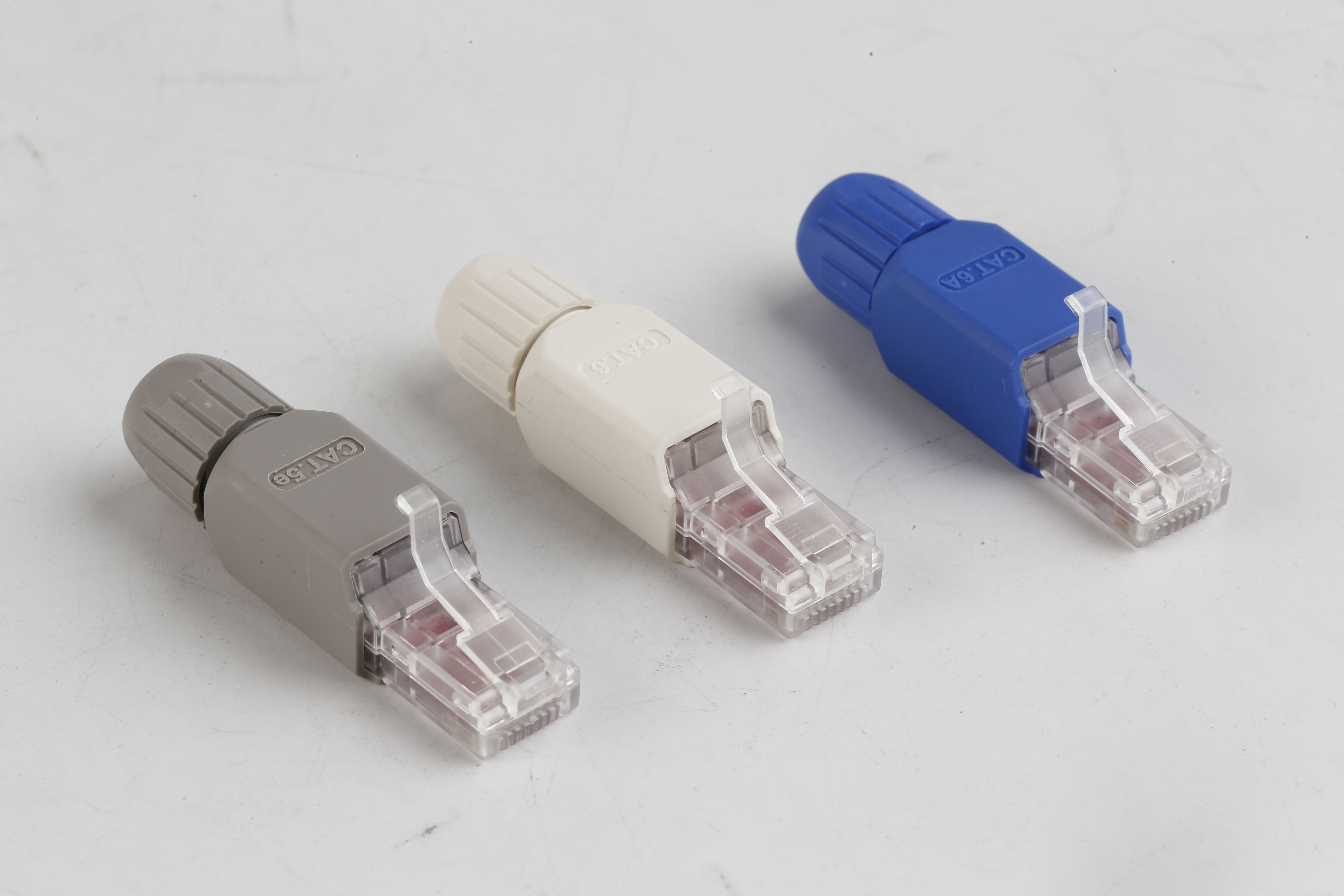

  • Color: White


Cable Matched:

  • Solid and stranded

  • 22AWG/23AWG/24AWG;

Electrical:


  • Contact resistance: ≤20m OHM;

  • Insulation resistance: ≥500m OHM @100 V DC;

  • Withstand voltage: DC1000V AC700V RMS 60HZ, IMIN;

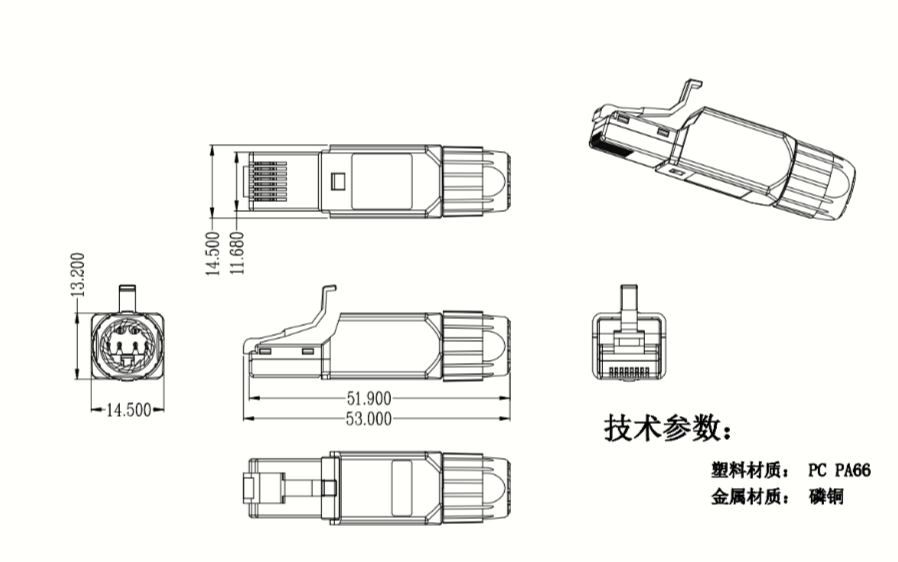

Mechanical:



  • Plastic material: new PC;

  • Gold Pins: phosphor bronze, gold plating 3μ″

  • Terminal pins: phosphor bronze,

  • RJ45 contact life: 750 times min.

  • IDC terminal life: 250 times min.


Environmental:


  • Storage: -40° ~  70°

  • Operation: -10° ~  60°
