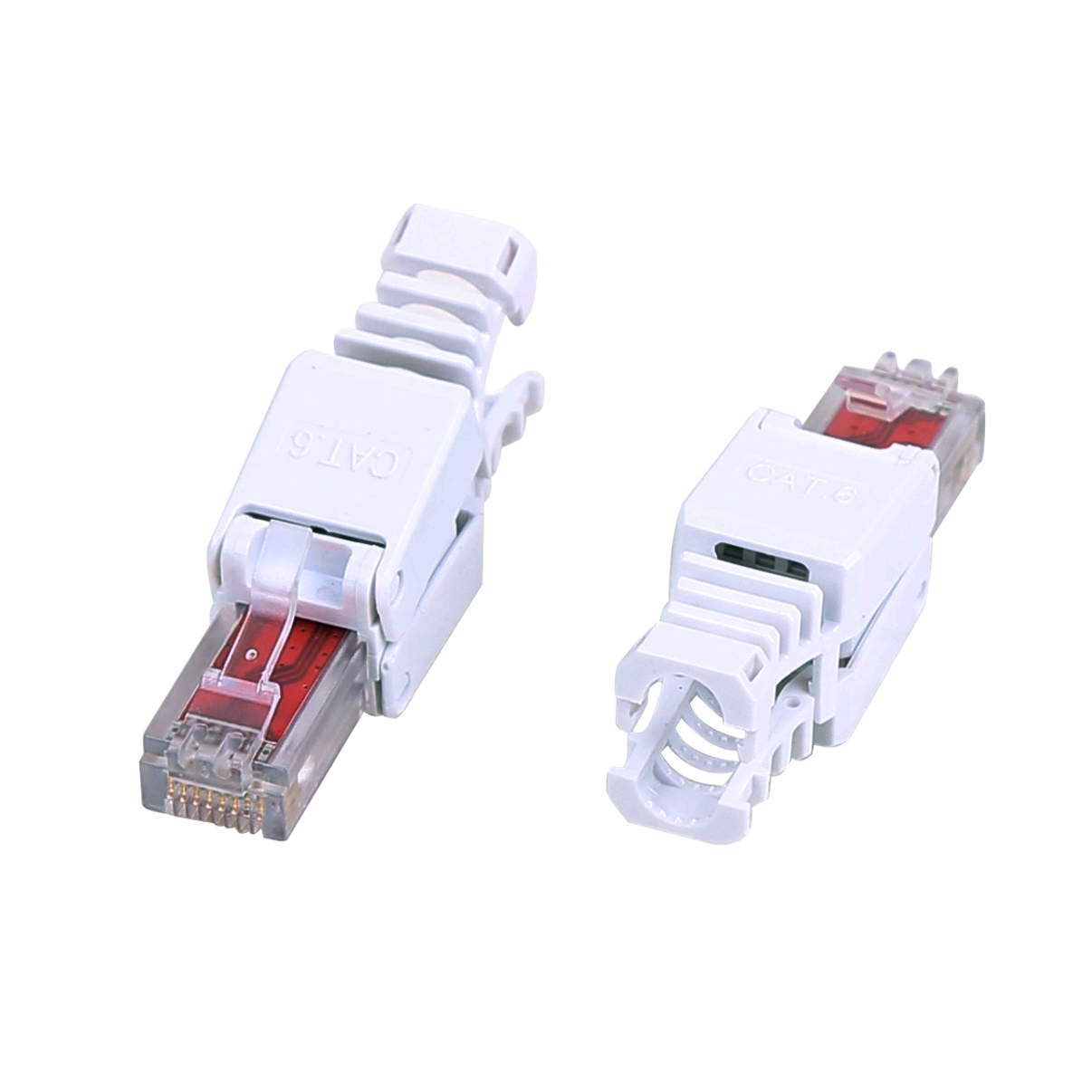

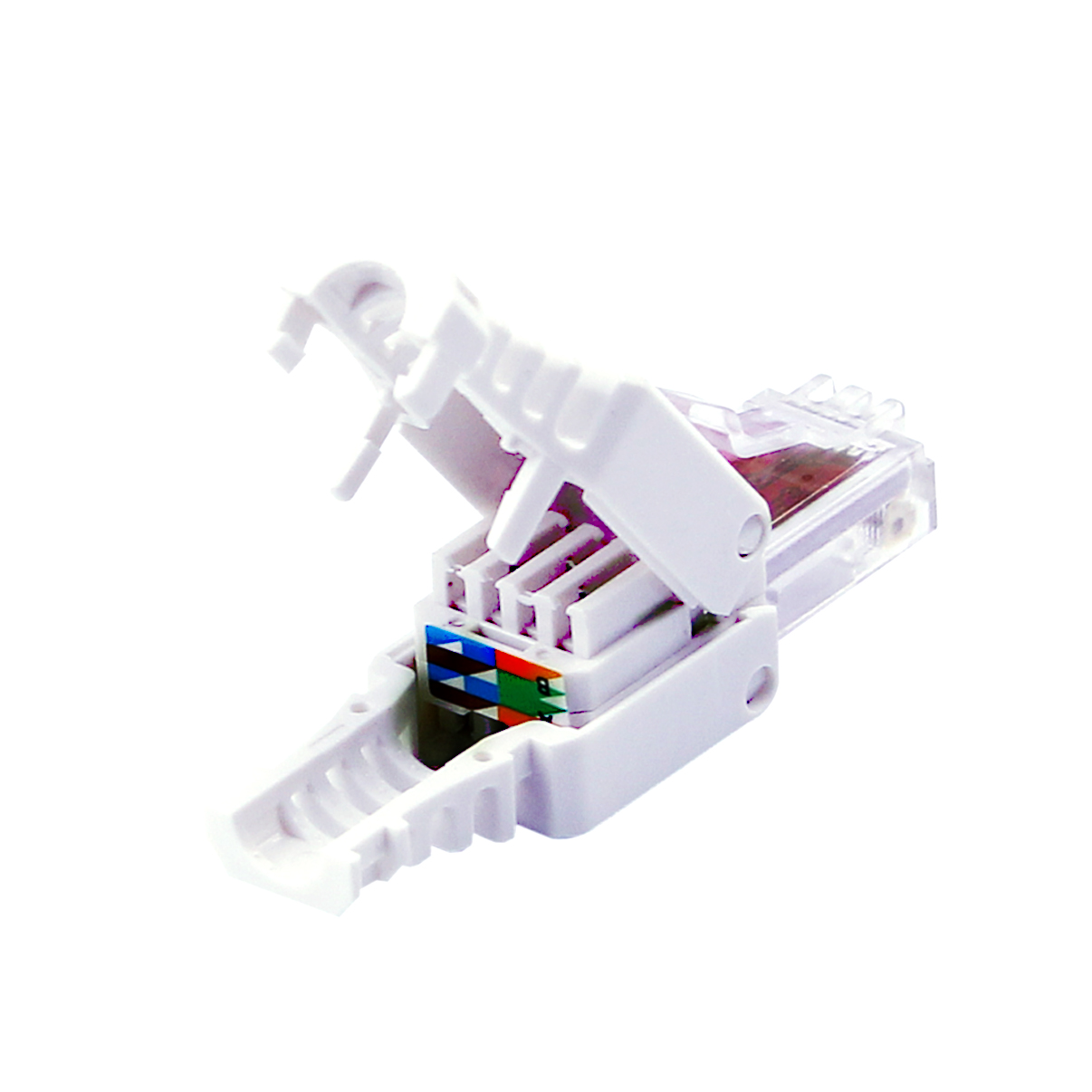

TM04C6ATCUTP

CAT6A UTP TOOLESS CONNECTOR

Colour: White

Application to Solid and Stranded conductor wire

22/23/24AWG

Contact Resistance: 20m OHM

Insulation resistance: ≧500M OHM @100V DC

Standard Voltage: DC 1000V AC700 RMS 60HZ, MIN

Cat 6A performance Link: Conform to ANSI/TIA/EIA 568B.2-10

Storage: -40 ℃/ +70℃

Plastic Material: New PC

Terminal Pins: PHOSPHOR Bronze , ZIN Plating

RJ45 Contact life: 750 Times Min

IDC Terminal life: 250 time Min
