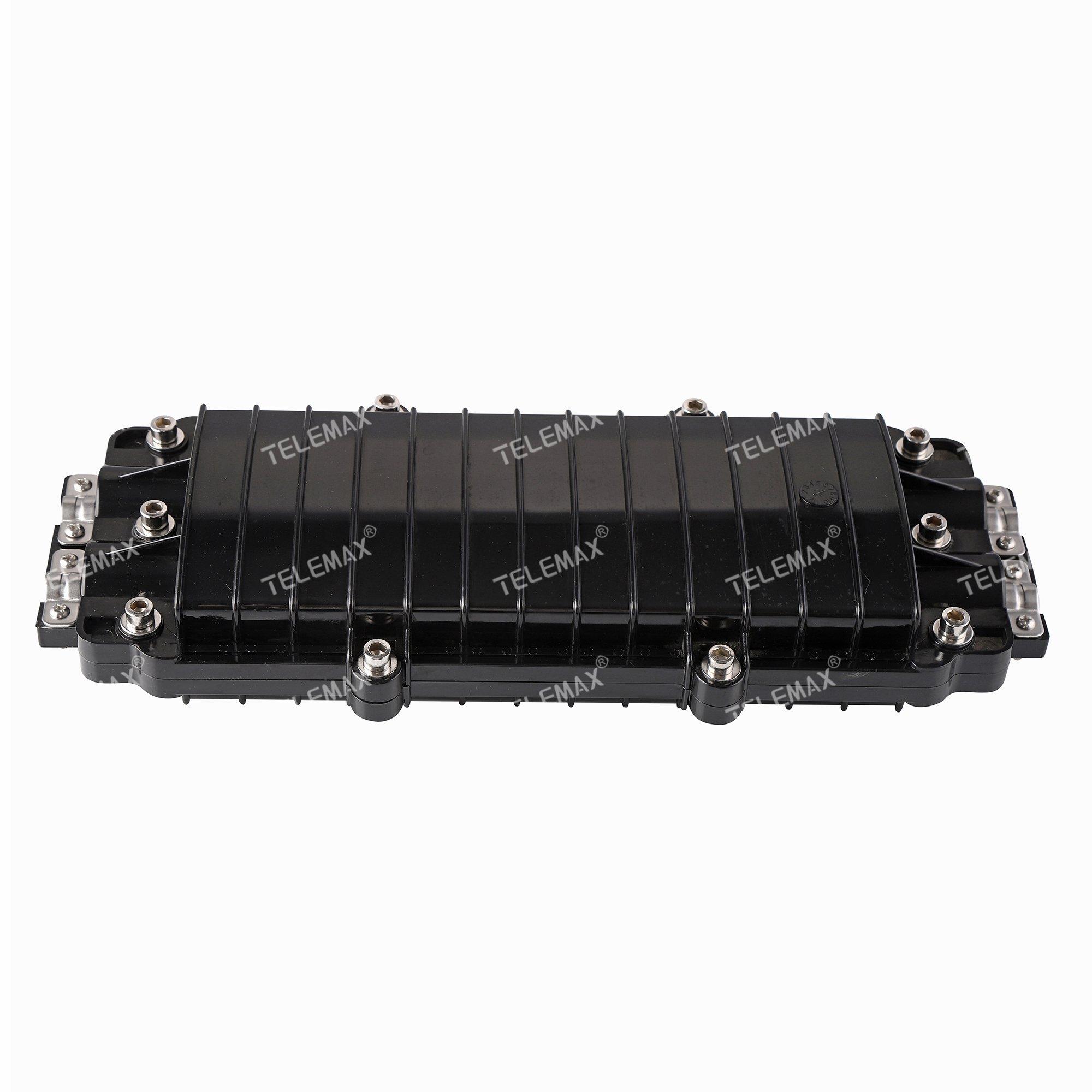

Fiber Enclosure Horizontal Type 72/96/144 Fiber

Part Code: TM-J004

Part Code: TM-J004

Fiber Enclosure Horizontal Type 72/96/144 Fiber


Overview


The product, Model No. TM-J004 can be applied in the straight line and branch lineone into two, one into threeconnections of optical cables within the diameter of 22mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.


Technicial Index


External Size 460mm*190mm*115mm

Weight 2.13kg


Optical fiber winding radius ≥40mm

Extra loss of fiber tray ≤0.01dB


Fiber length left in tray ≥1.6m

Single 144 cores


Working temperature - 40 ~ + 65

Lateral pressure-resistance ≥2000N / 10cm

Shock-resistance ≥20N.m


Features:

  • All property indexes are in accordance with National YD/T814-2013 Standard

  • The case body is made from imported high-intensity engineering plastics (PC) and formed the shape with mould plastics under high pressure.

  • With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

  • The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain.

  • Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

  • Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.
