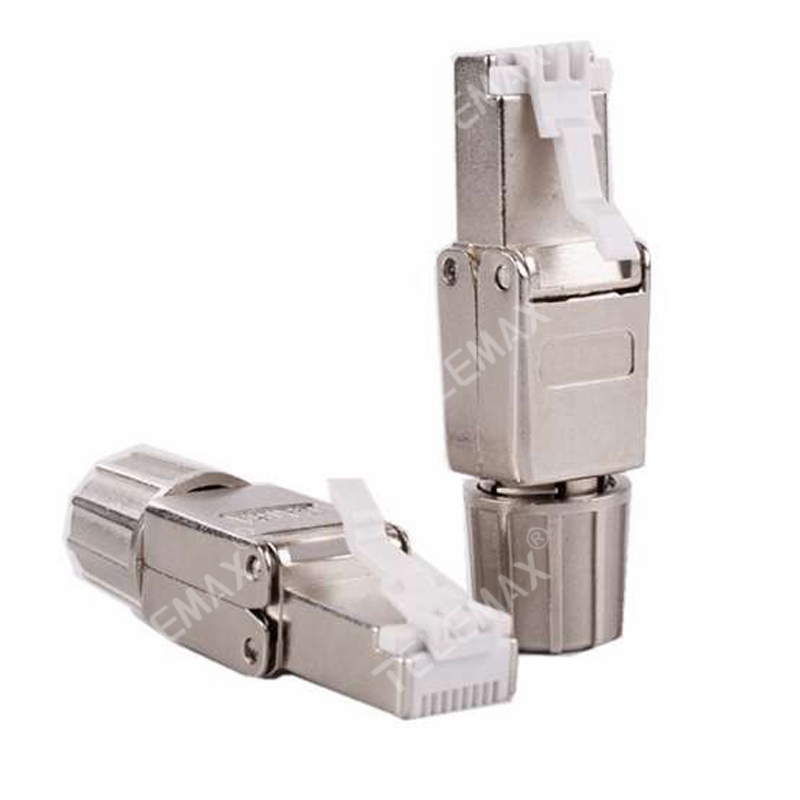

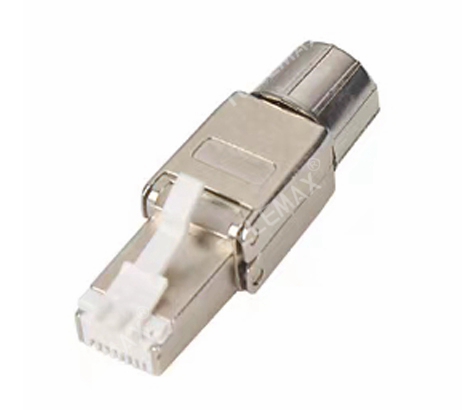

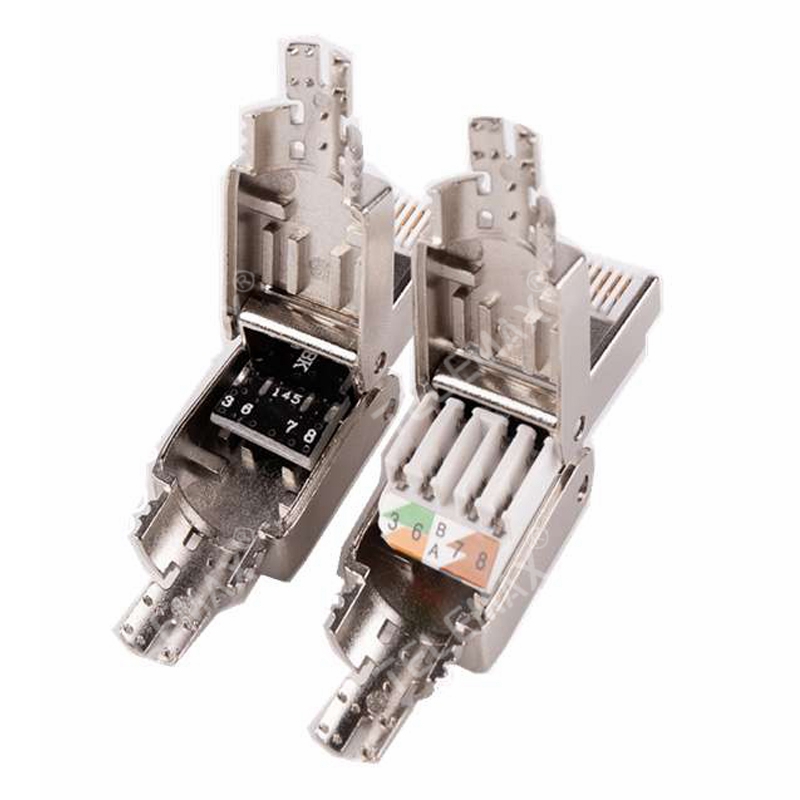

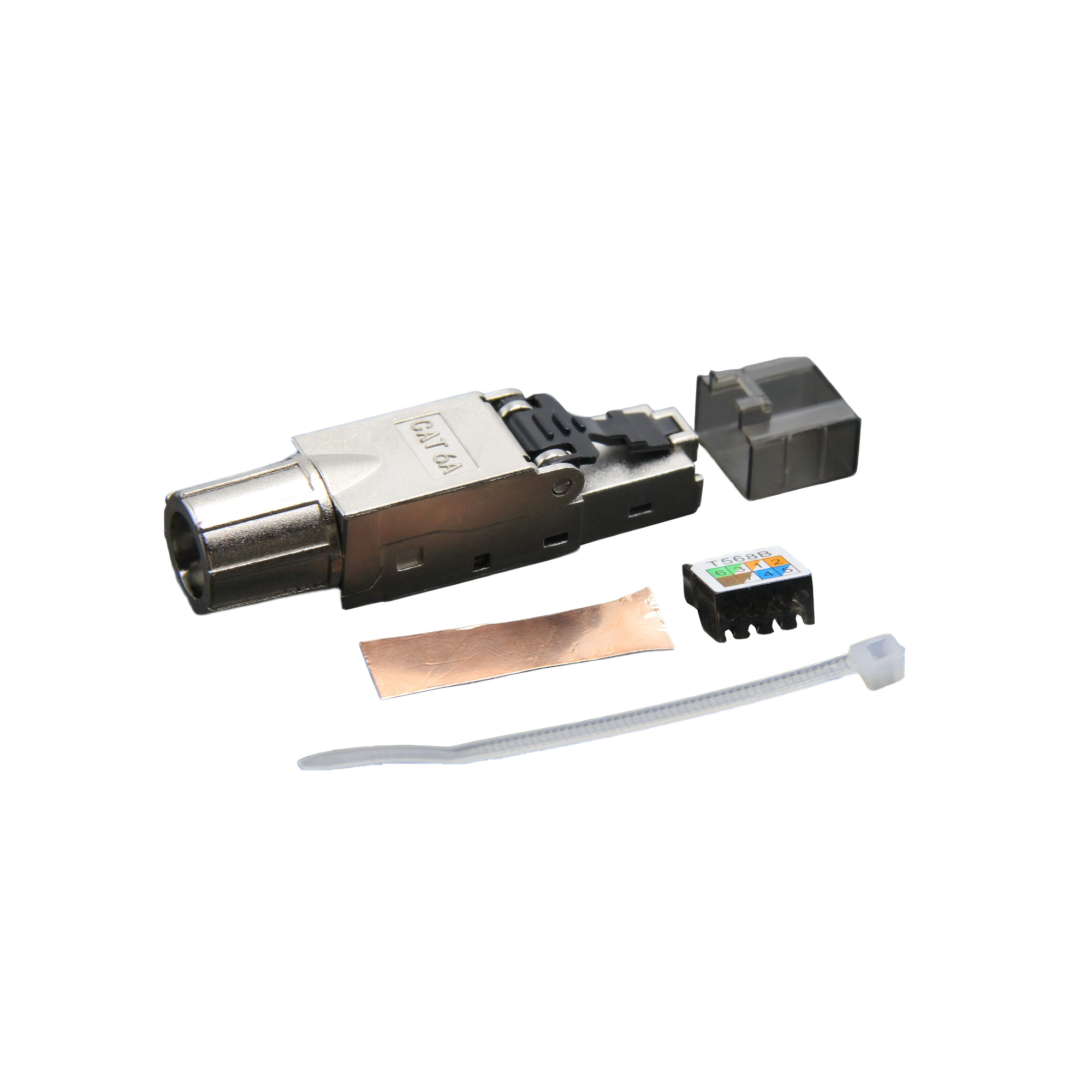

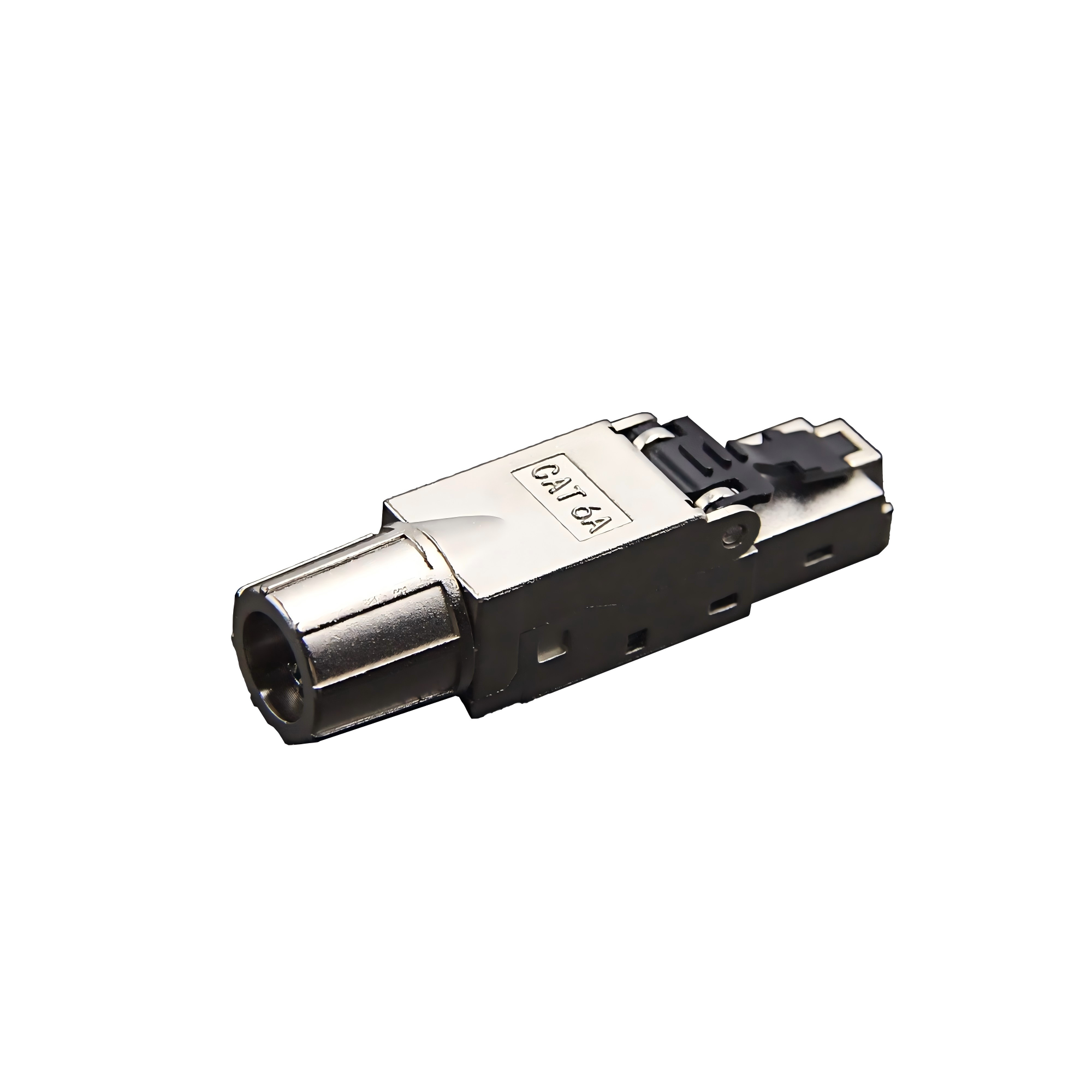

Cat6/6a STP Tool Free / Tooless Connector

Part Code: TM04C6ATLC

Part Code: TM04C6ATLC

Cat6/6a STP Tool Free / Tooless Connector


Matched solid and stranded cable 23/24AWG

Connect resistance : 20M OHM

Insulation resistance<=100M OHM @100V DC

voltage: DC 1000V AC 700V RMS 60HZ,MIN

CAT6A perm link : Conform to ANSI/TIA/EIA 568B.2-10

Storage: -40 /+70 degreeOperation: -30 / +60 degree

Plastic material: PC

Metal material: ZINC Alloy

Terminal PINS: PHOSPHOR BRONZE

NICKEL PLATINGIDC

TERMINAL: 250TIME MIN
